Extension Housing Rear Seal & Bushing: Removal

1. Raise and support vehicle. Mark propeller shaft end yoke and rear axle companion flange for reassembly reference. Remove propeller shaft.
2. Remove extension housing rear oil seal and bushing using Pullers (T71P-7657-A for seal and T77L-7697-E for bushing). See Fig 1 .

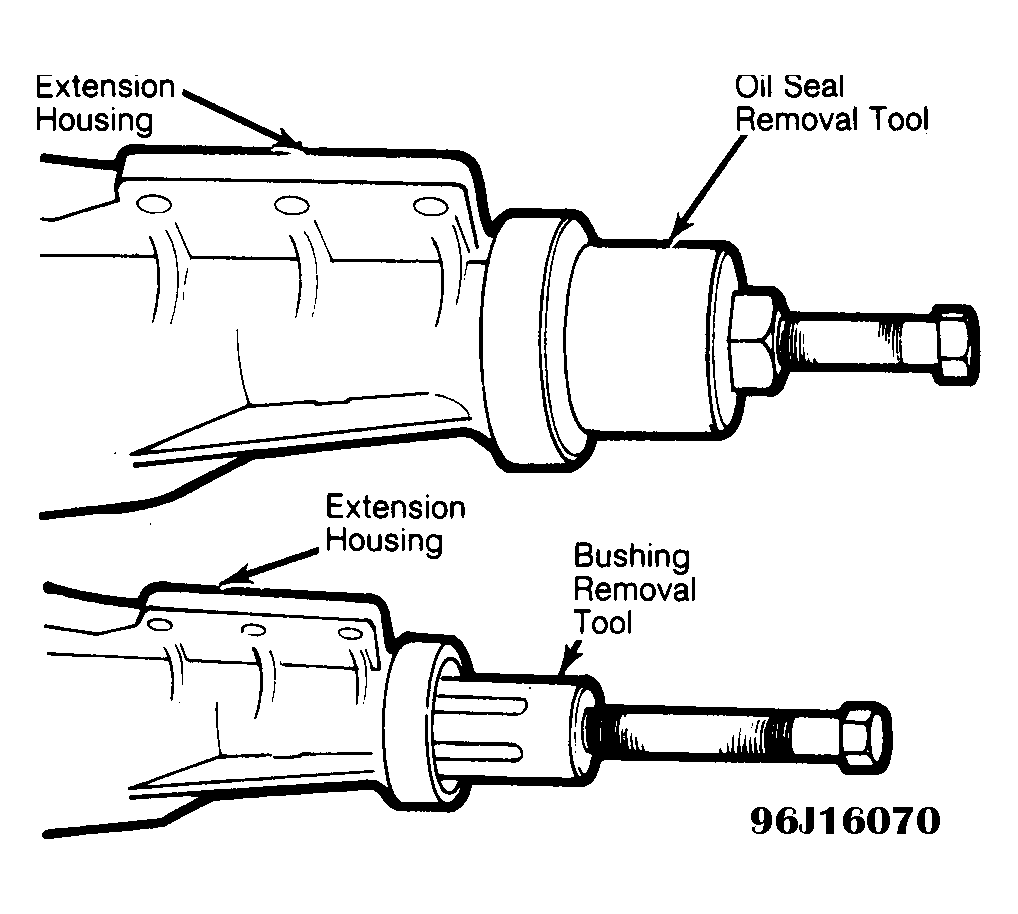

Fig 1: Removing Extension Housing Oil Seal & Bushing

Courtesy of FORD MOTOR CO.
