Master Brake Cylinder: Removal

Disconnect low fluid level sensor wiring. Disconnect brake lines from master cylinder. Cap lines and master cylinder ports. Remove attaching nuts and master cylinder. See Fig 1 .

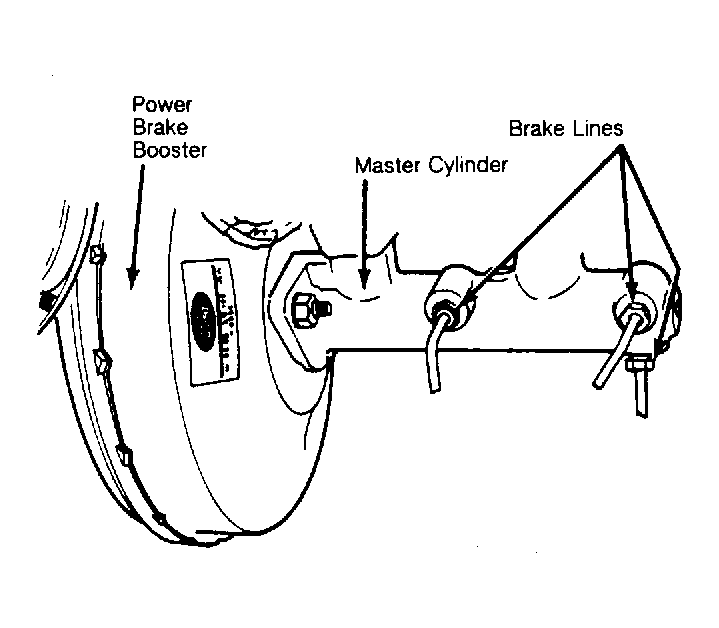

Fig 1: View of Master Brake Cylinder
