Vehicle Dynamic Systems: 3.5L

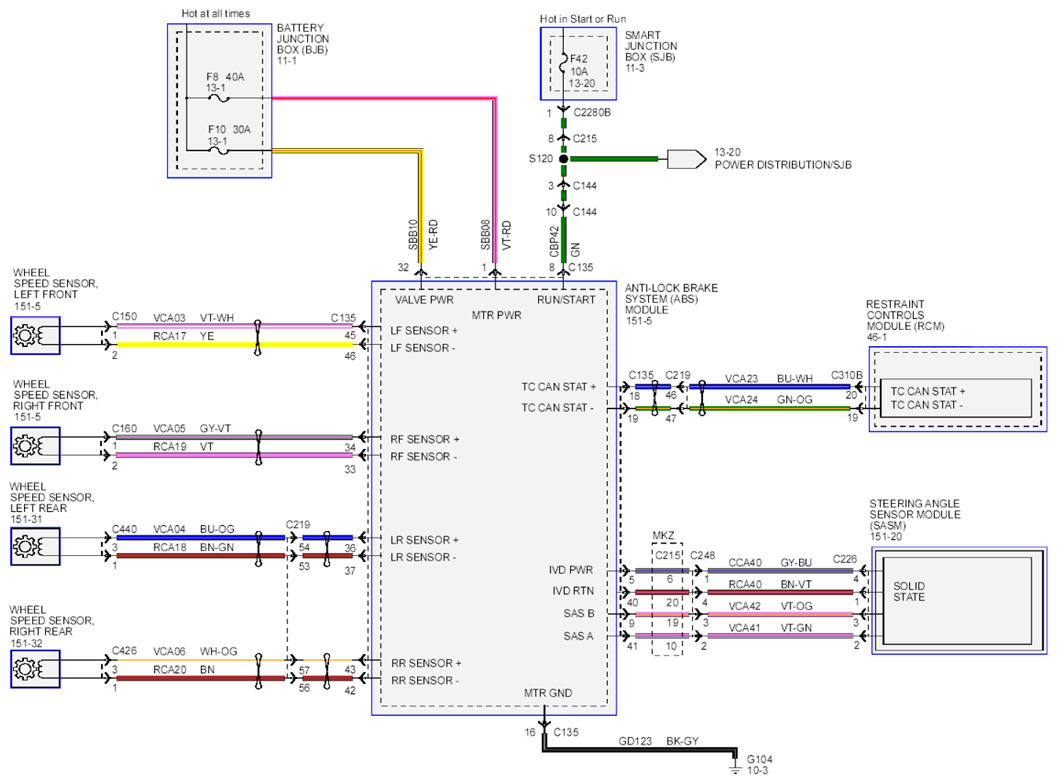

Fig 1: Vehicle Dynamic Systems Schematic - 3.5L (1 Of 2)
Courtesy of FORD MOTOR CO.

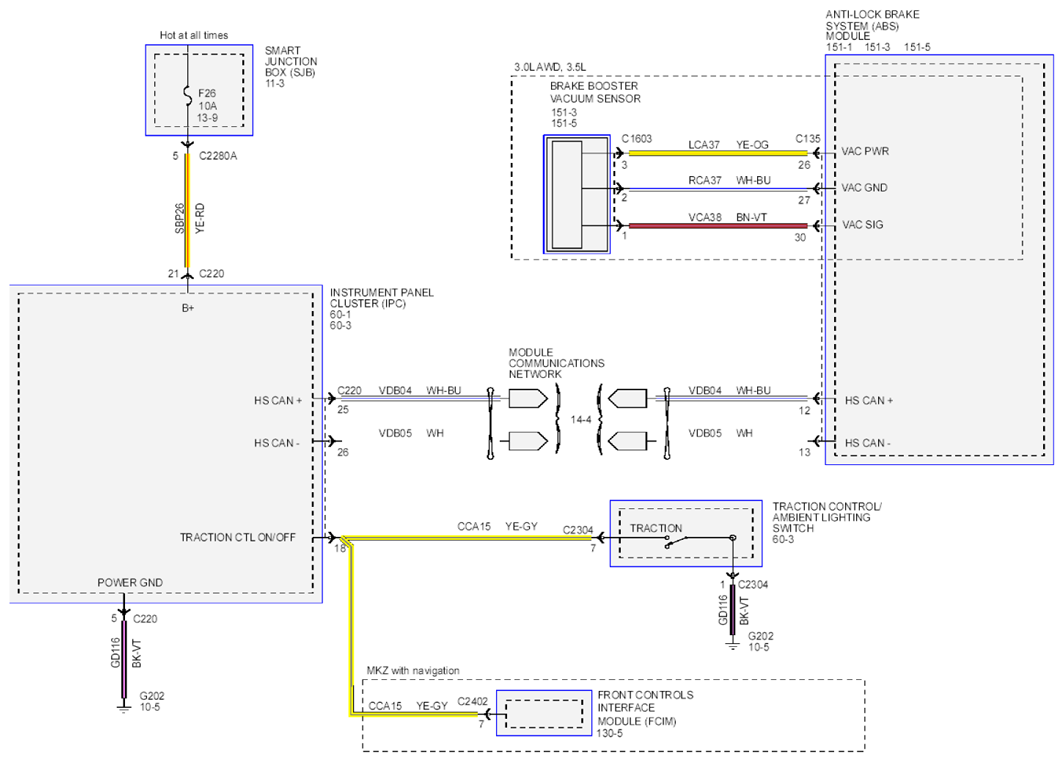

Fig 2: Vehicle Dynamic Systems Schematic - 3.5L (2 Of 2)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
