Power Windows: MKZ

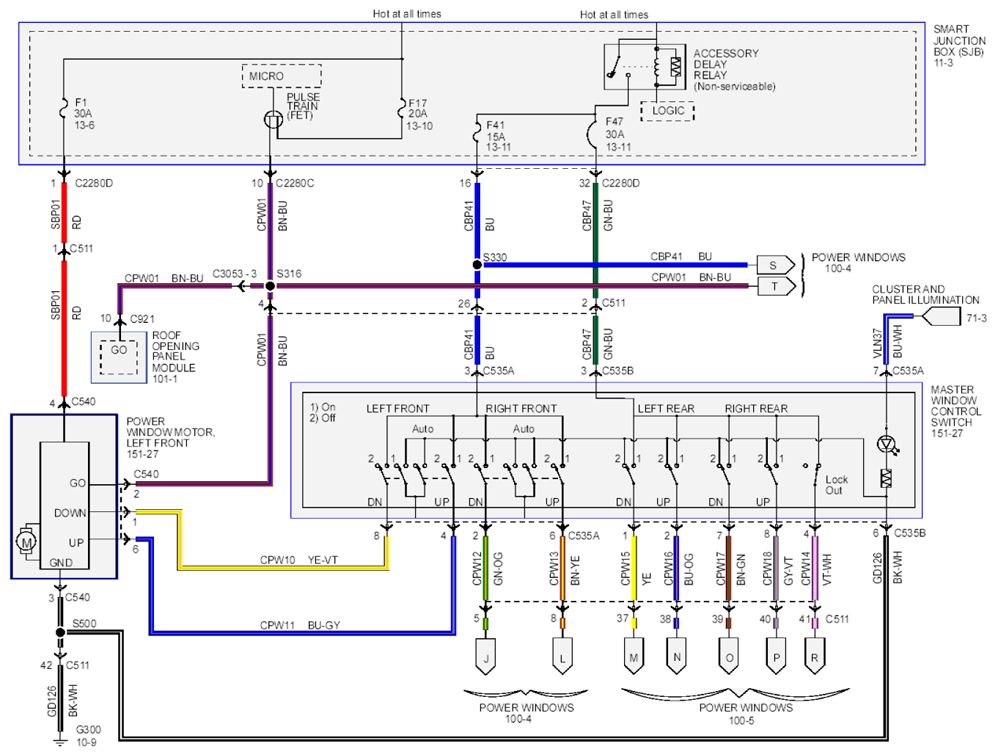

Fig 1: Power Windows Schematic - MKZ (1 Of 3)
G07861519Courtesy of FORD MOTOR CO.

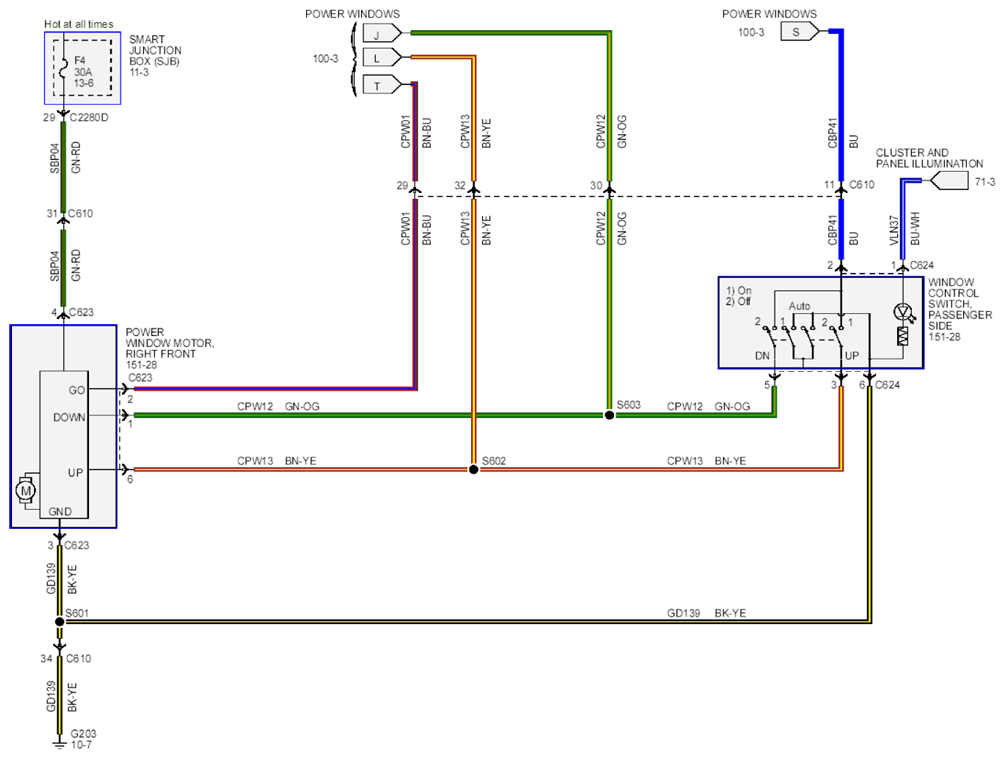

Fig 2: Power Windows Schematic - MKZ (2 Of 3)
G07861520Courtesy of FORD MOTOR CO.

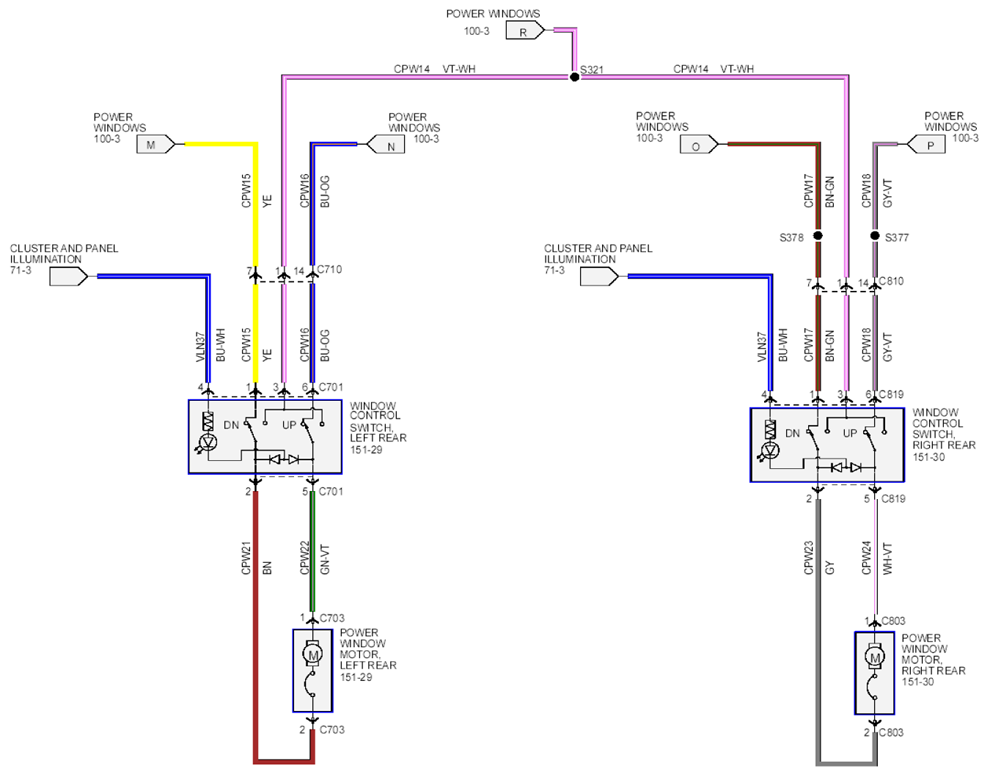

Fig 3: Power Windows Schematic - MKZ (3 Of 3)
G07861521Courtesy of FORD MOTOR CO.
