Power Distribution_SJB: MKZ

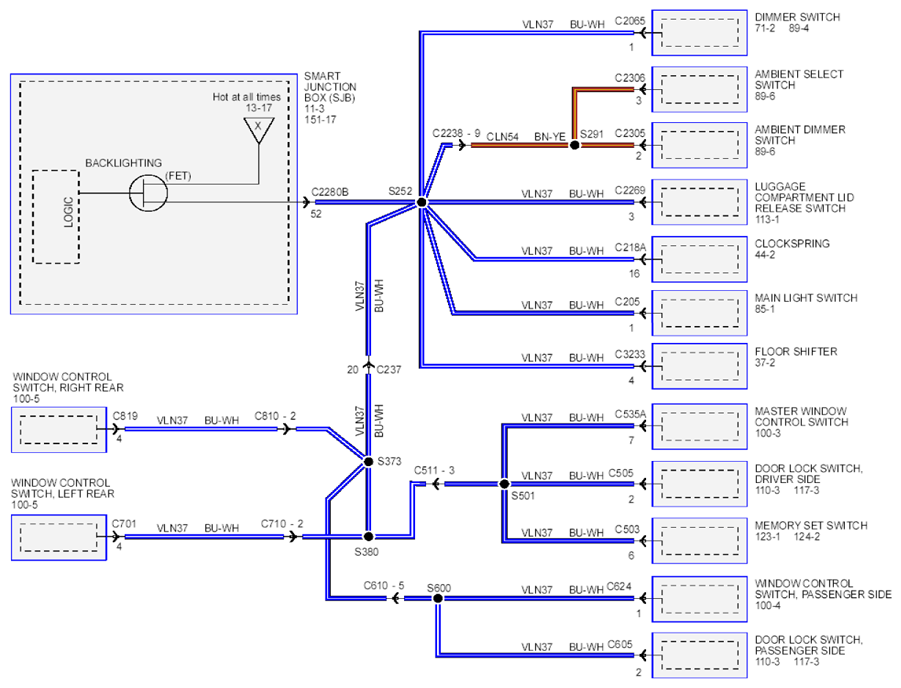

Fig 1: Power Distribution SJB Schematic - MKZ

G07861400

Courtesy of FORD MOTOR CO.
