Power Distribution_SJB: F6

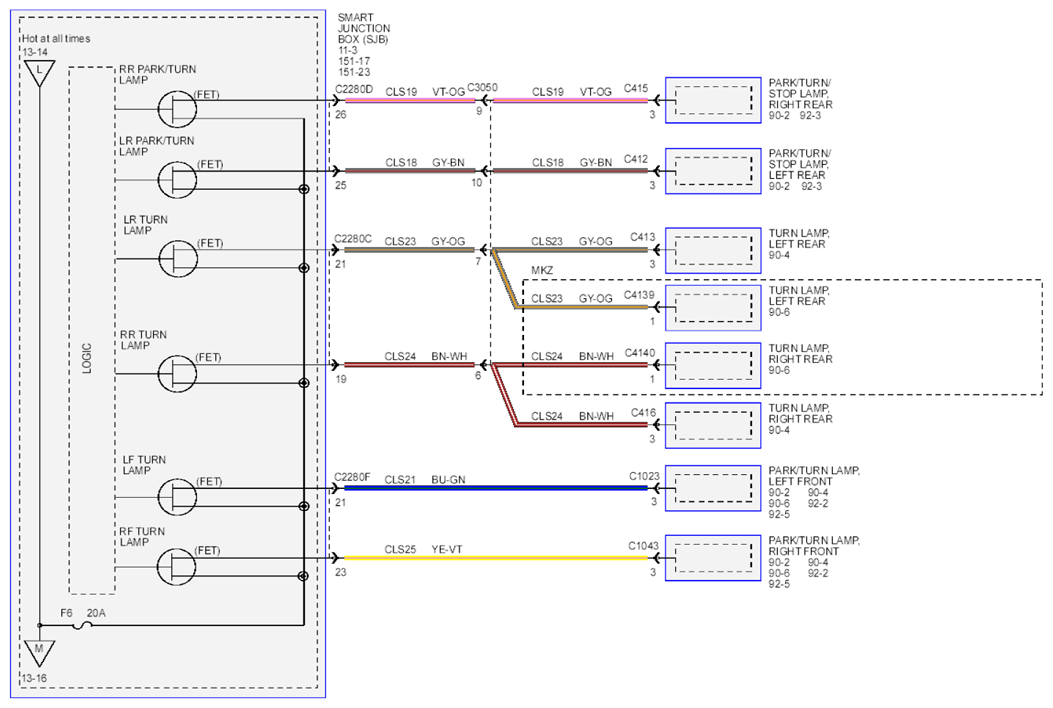

Fig 1: Power Distribution SJB Schematic - F6

G07861397

Courtesy of FORD MOTOR CO.
