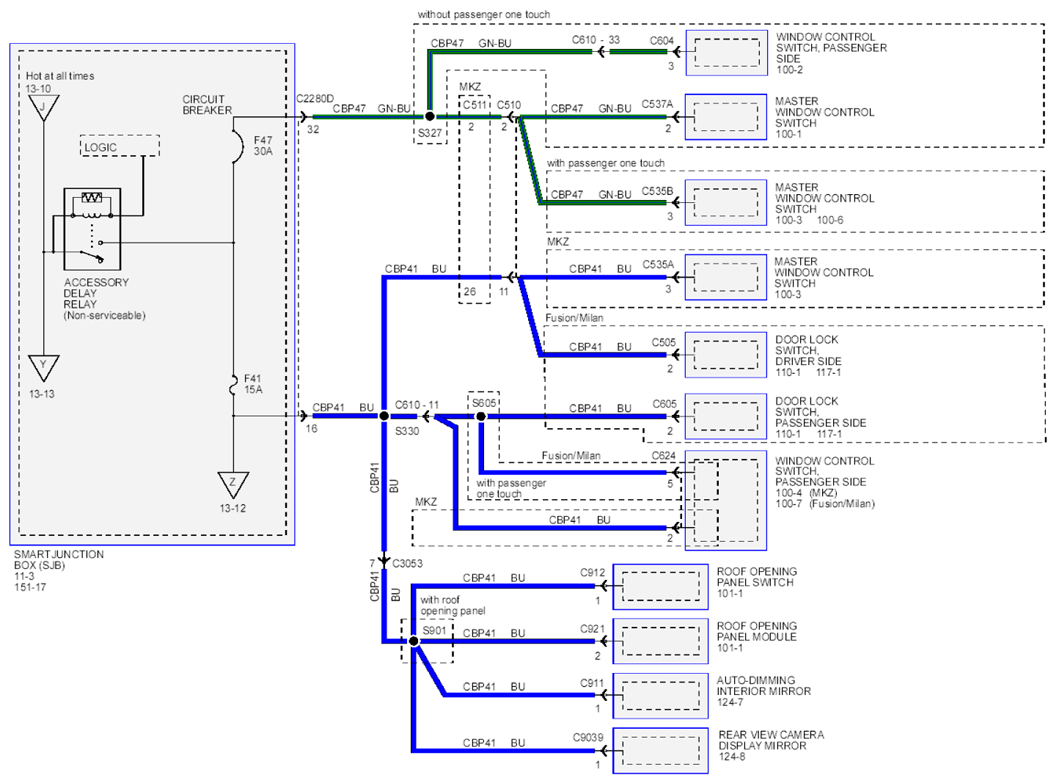

Home >> Mercury >> 2011 >> Milan Base, Automatic >> Repair and Diagnosis >> Electrical >> Motors, Switches, Relays >> OEM Wiring Diagrams (Except Hybrid) >> Power Distribution_SJB >> F41, F47 Circuit Breaker
