Mercury
>>
2011
>>
Milan Base, Automatic
>>
Repair and Diagnosis
>>
Electrical
>>
Motors, Switches, Relays
>>
OEM Wiring Diagrams (Except Hybrid)
>>
Power Distribution_SJB
>>
F3, F5, F6, F46, F47, F48, F49
F3, F5, F6, F46, F47, F48, F49

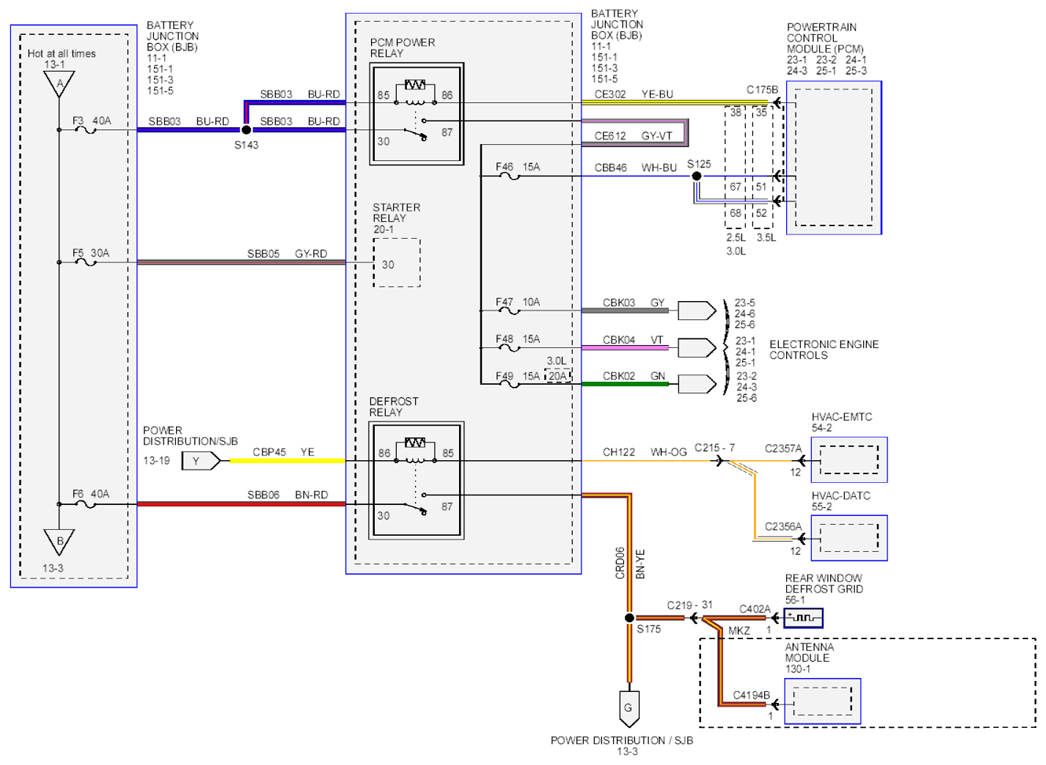

Fig 1: Power Distribution SJB Schematic - F3, F5, F6, F46, F47, F48, F49
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
