Electronic Engine Controls - 3.5L

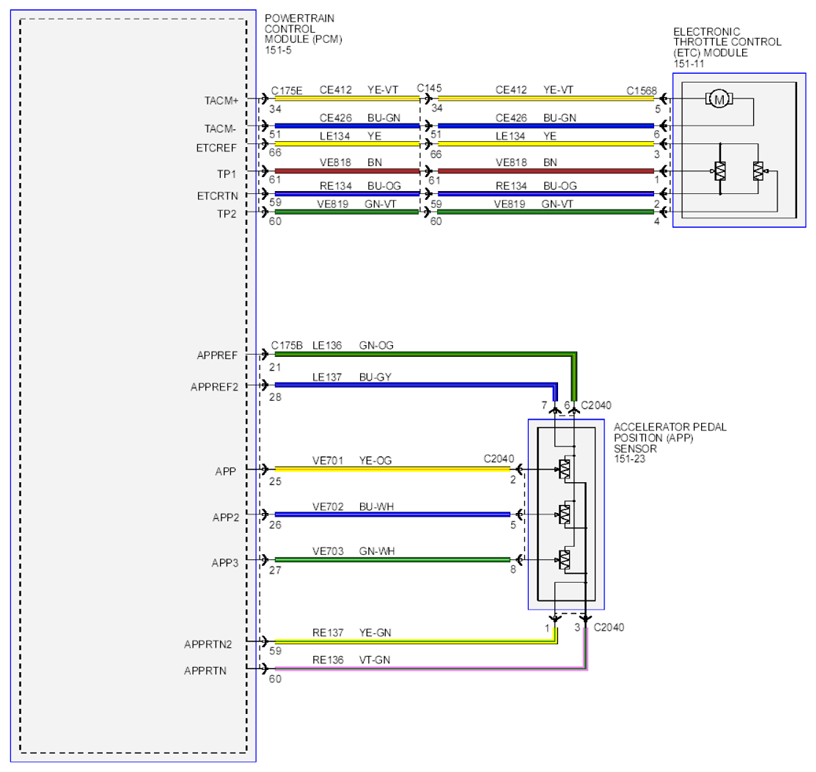

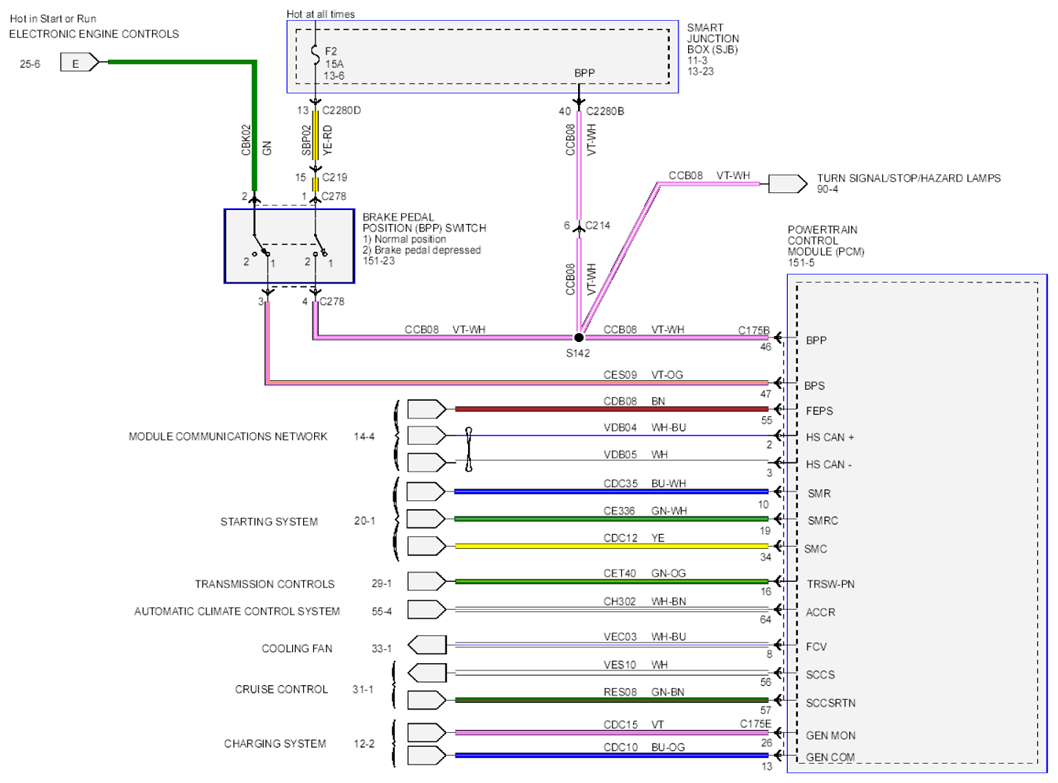

Fig 1: Electronic Engine Controls Schematic - 3.5L (1 Of 11)

Courtesy of FORD MOTOR CO.

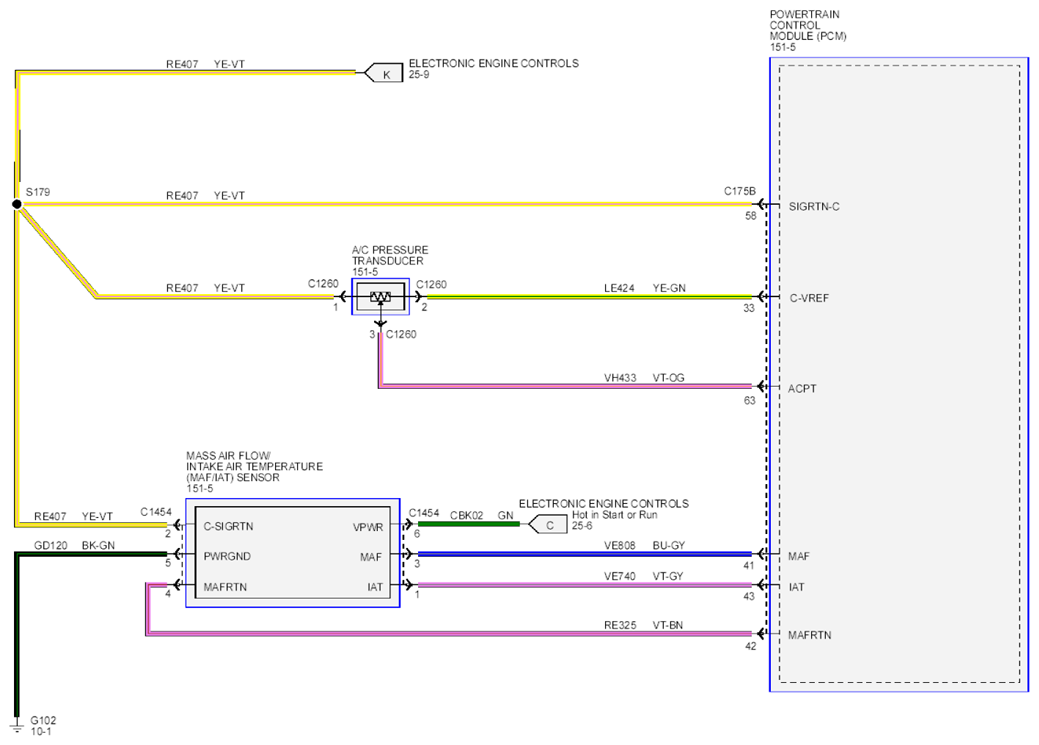

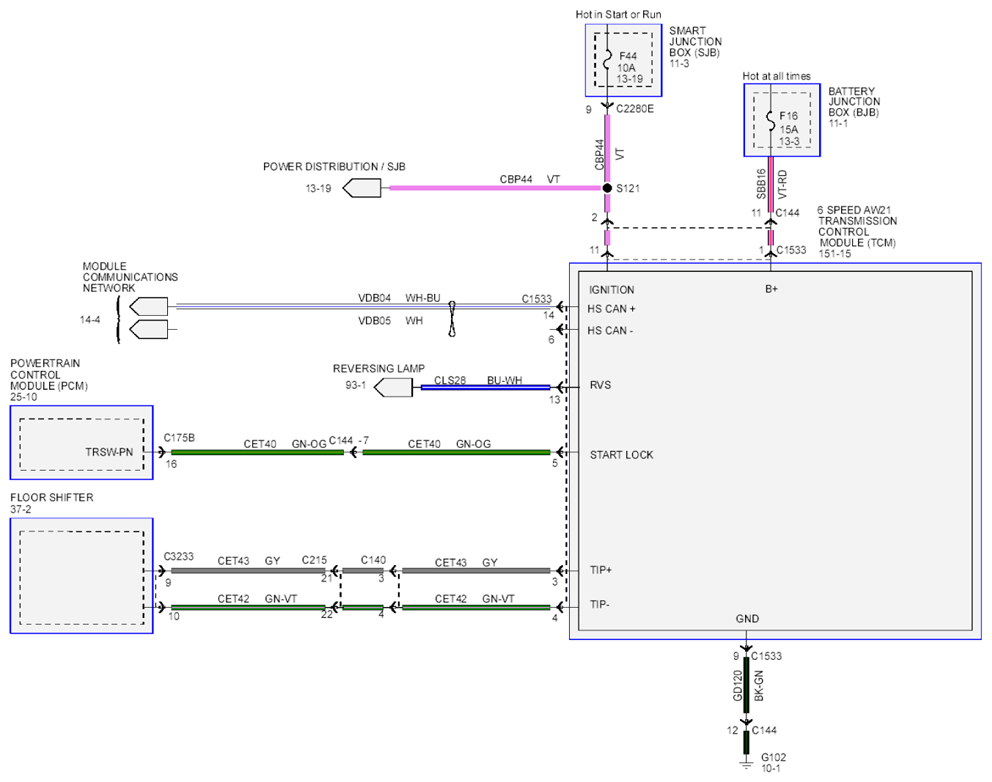

Fig 2: Electronic Engine Controls Schematic - 3.5L (2 Of 11)

Courtesy of FORD MOTOR CO.

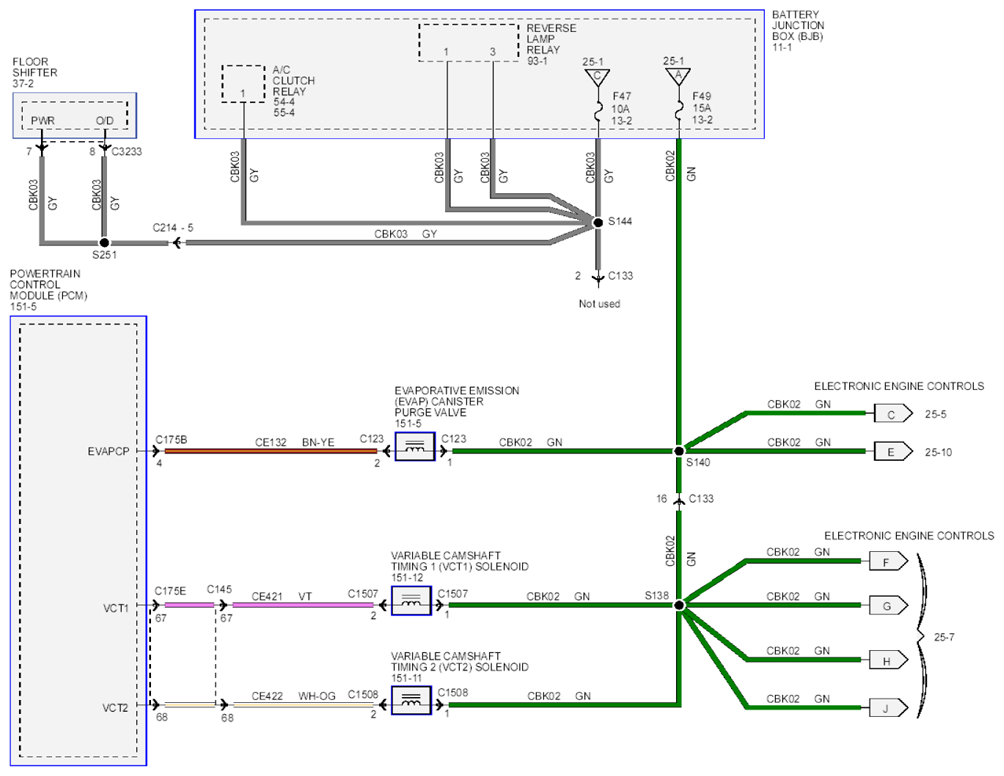

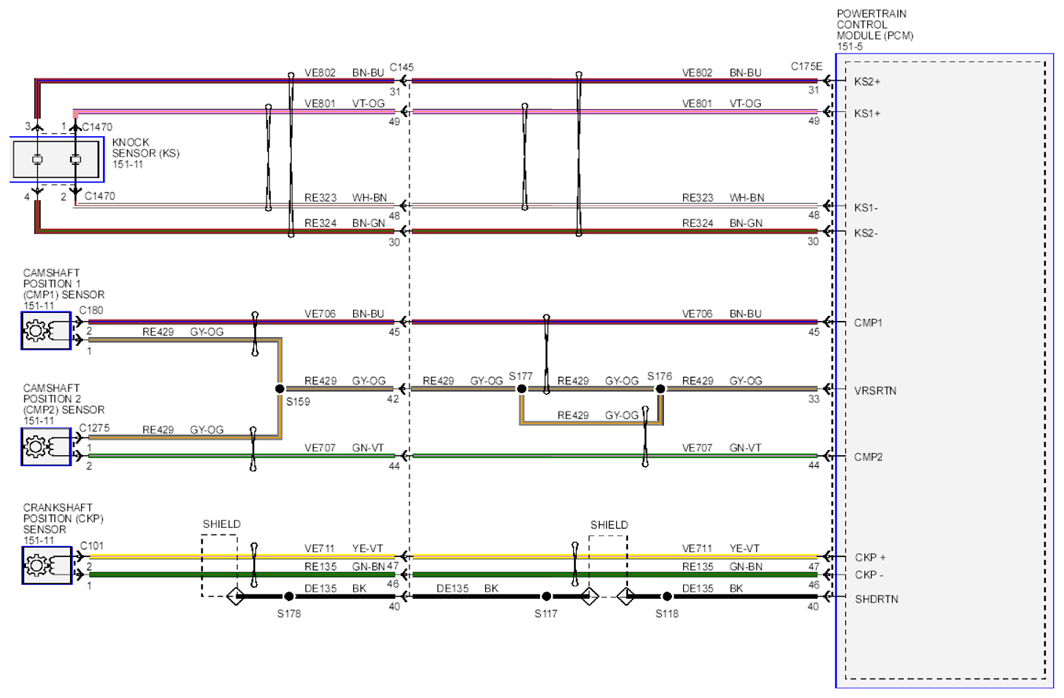

Fig 3: Electronic Engine Controls Schematic - 3.5L (3 Of 11)

Courtesy of FORD MOTOR CO.

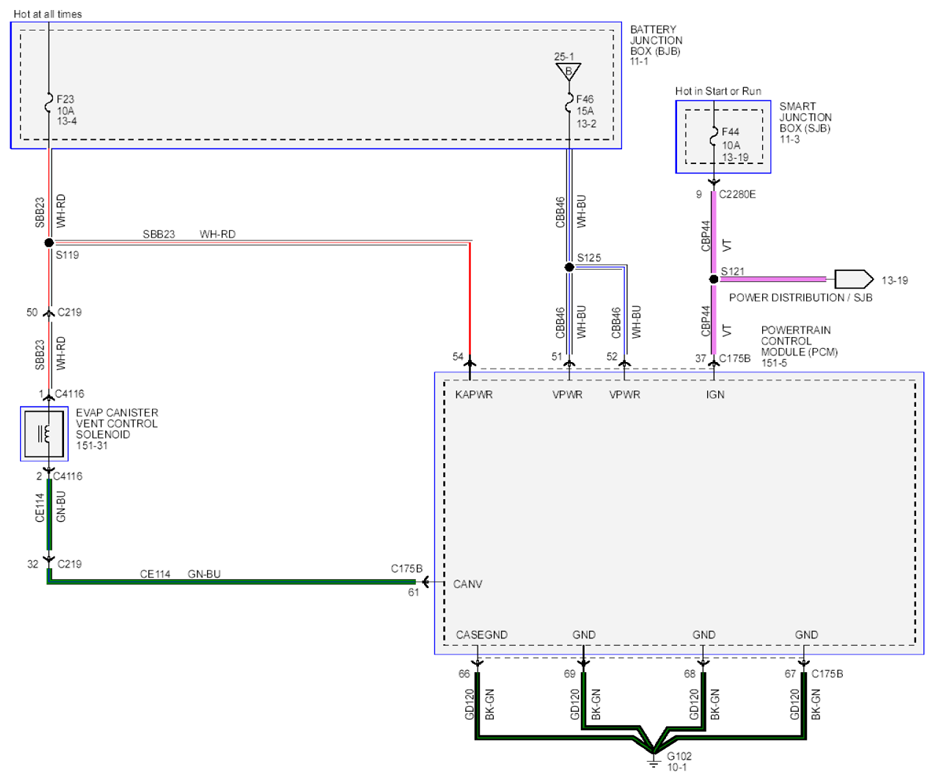

Fig 4: Electronic Engine Controls Schematic - 3.5L (4 Of 11)

Courtesy of FORD MOTOR CO.

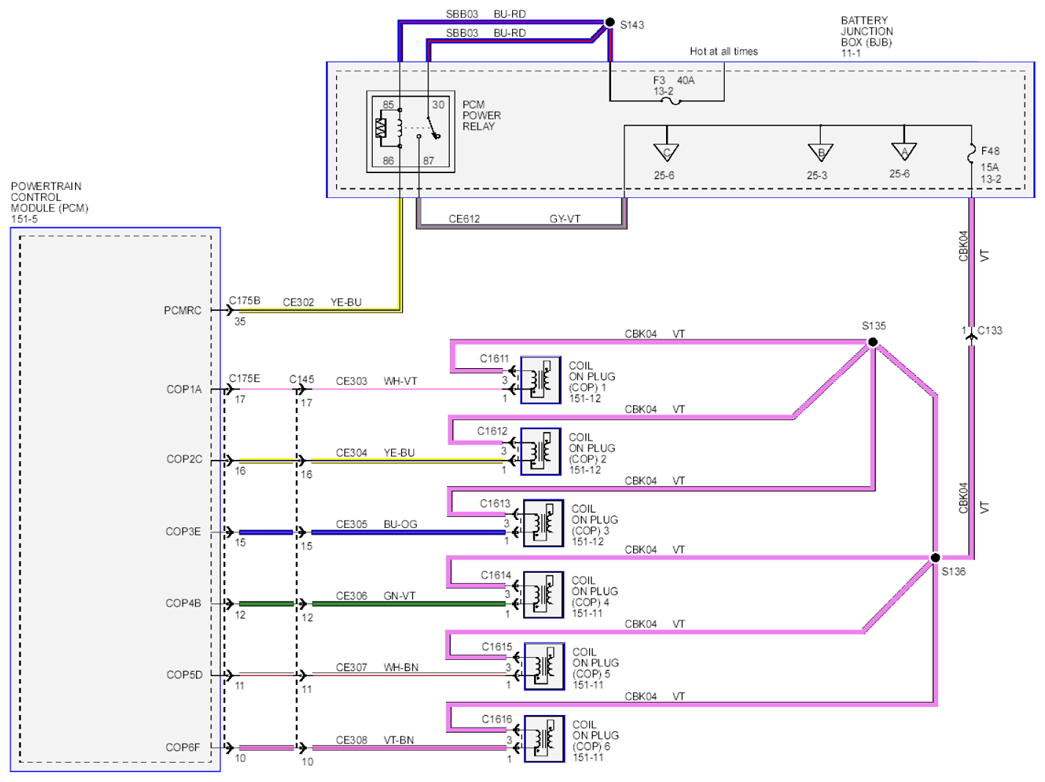

Fig 5: Electronic Engine Controls Schematic - 3.5L (5 Of 11)

Courtesy of FORD MOTOR CO.

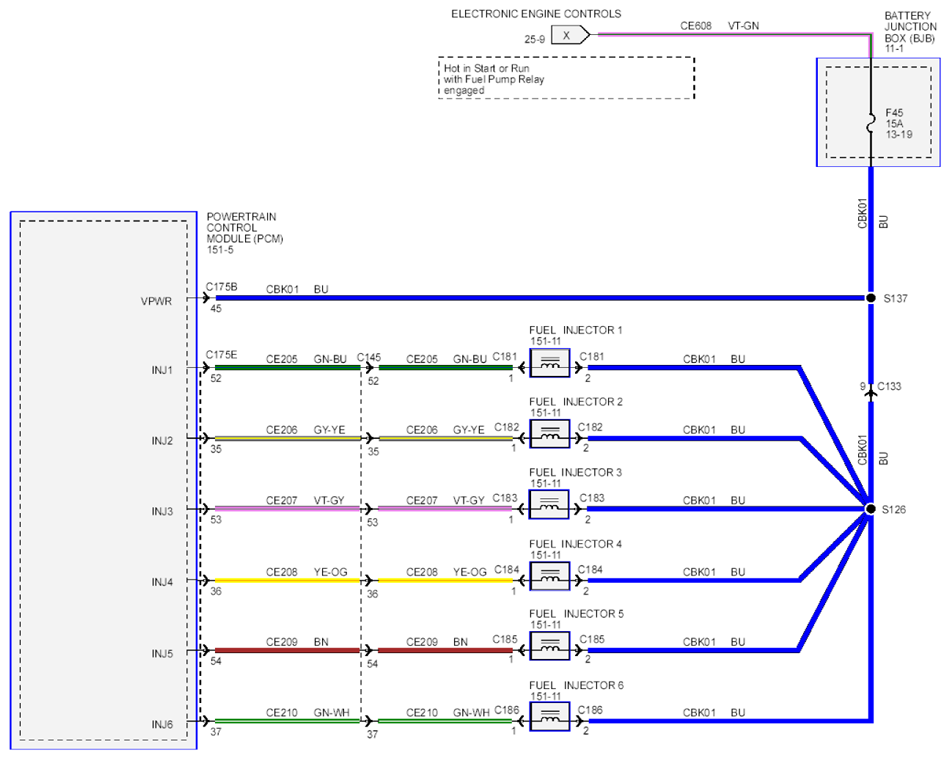

Fig 6: Electronic Engine Controls Schematic - 3.5L (6 Of 11)

Courtesy of FORD MOTOR CO.

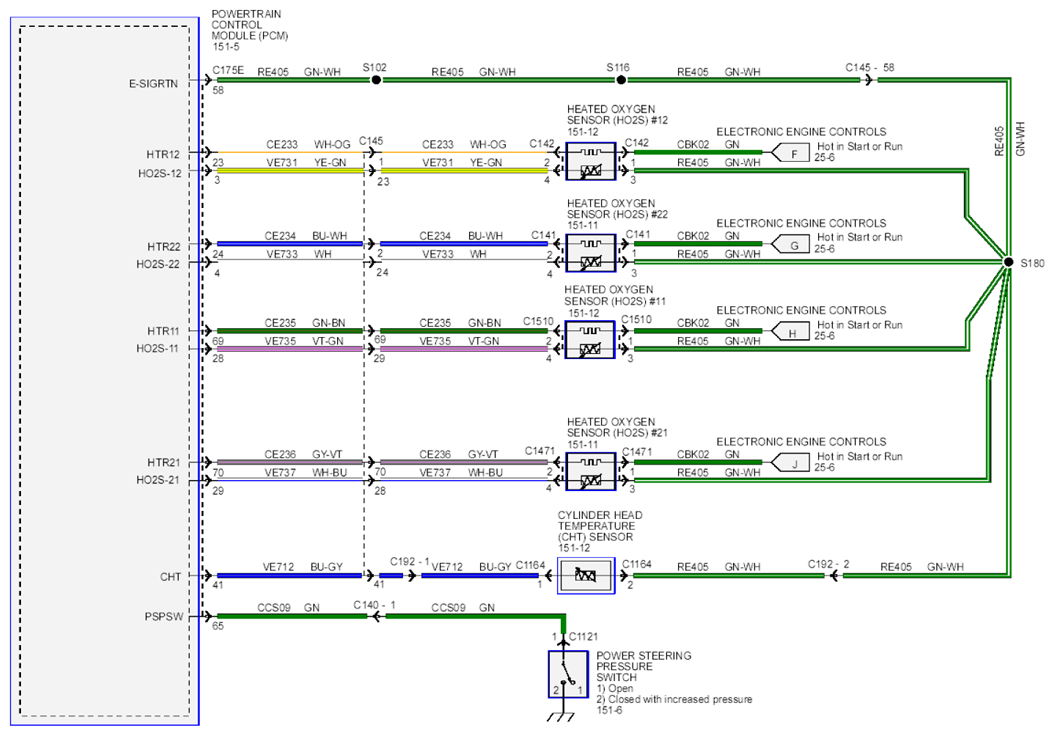

Fig 7: Electronic Engine Controls Schematic - 3.5L (7 Of 11)

Courtesy of FORD MOTOR CO.

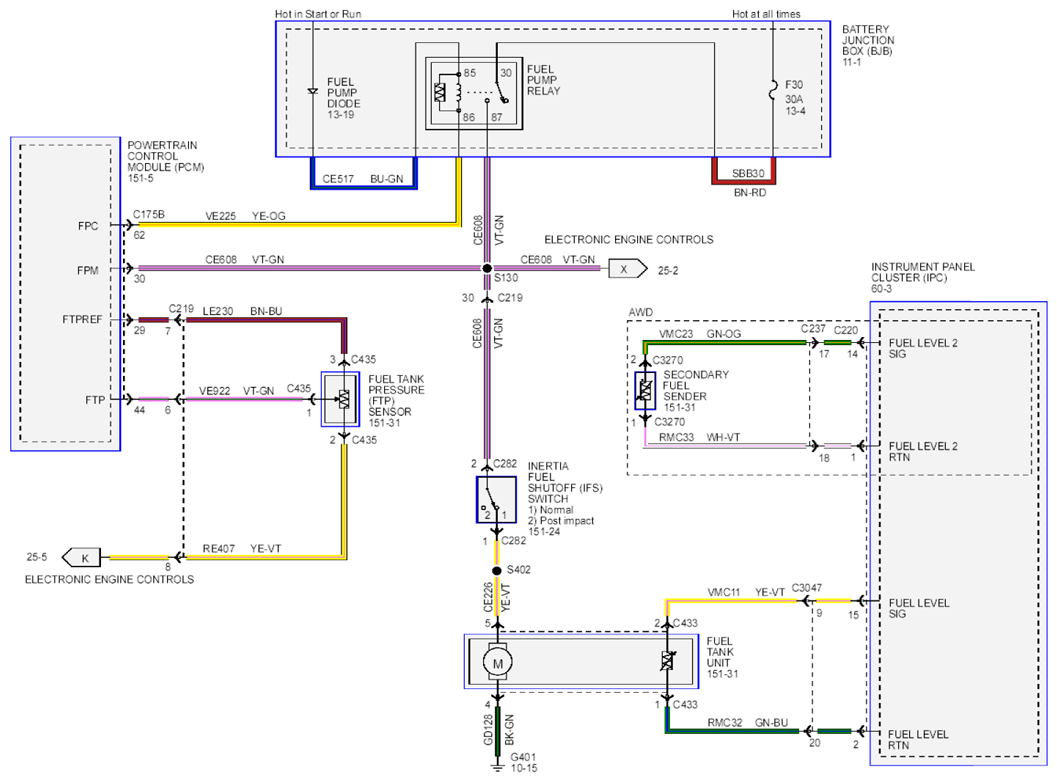

Fig 8: Electronic Engine Controls Schematic - 3.5L (8 Of 11)

Courtesy of FORD MOTOR CO.

Fig 9: Electronic Engine Controls Schematic - 3.5L (9 Of 11)

Courtesy of FORD MOTOR CO.

Fig 10: Electronic Engine Controls Schematic - 3.5L (10 Of 11)

Courtesy of FORD MOTOR CO.

Fig 11: Electronic Engine Controls Schematic - 3.5L (11 Of 11)

Courtesy of FORD MOTOR CO.
