Automatic Climate Control System
Automatic Climate Control System

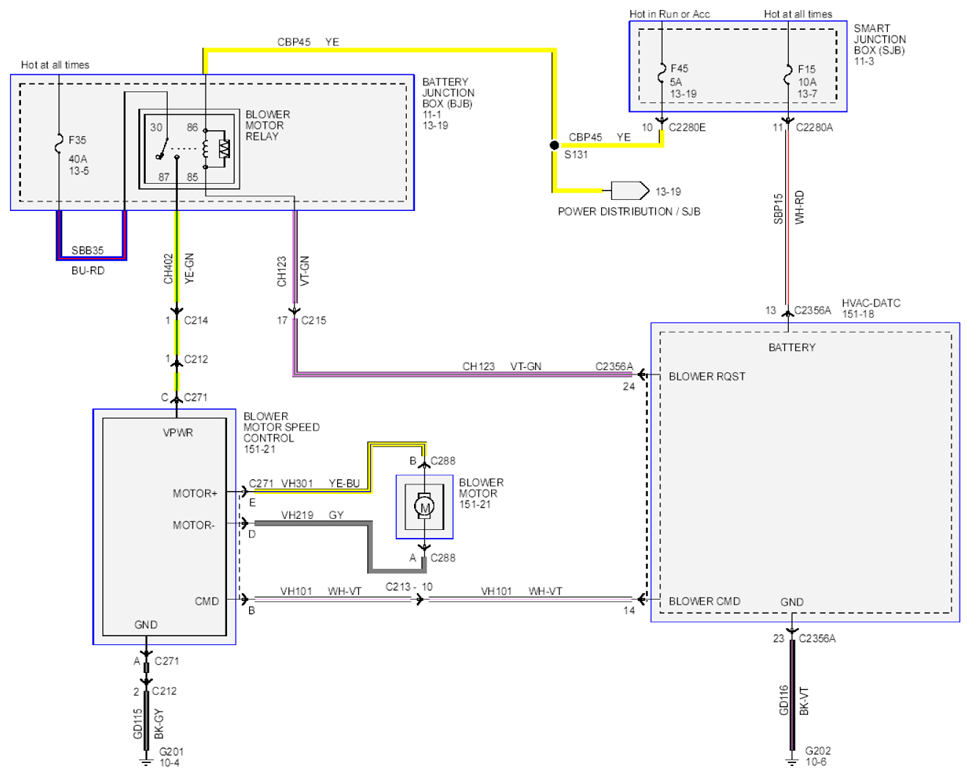

Fig 1: Automatic Climate Control System Schematic (1 Of 4)
Courtesy of FORD MOTOR CO.

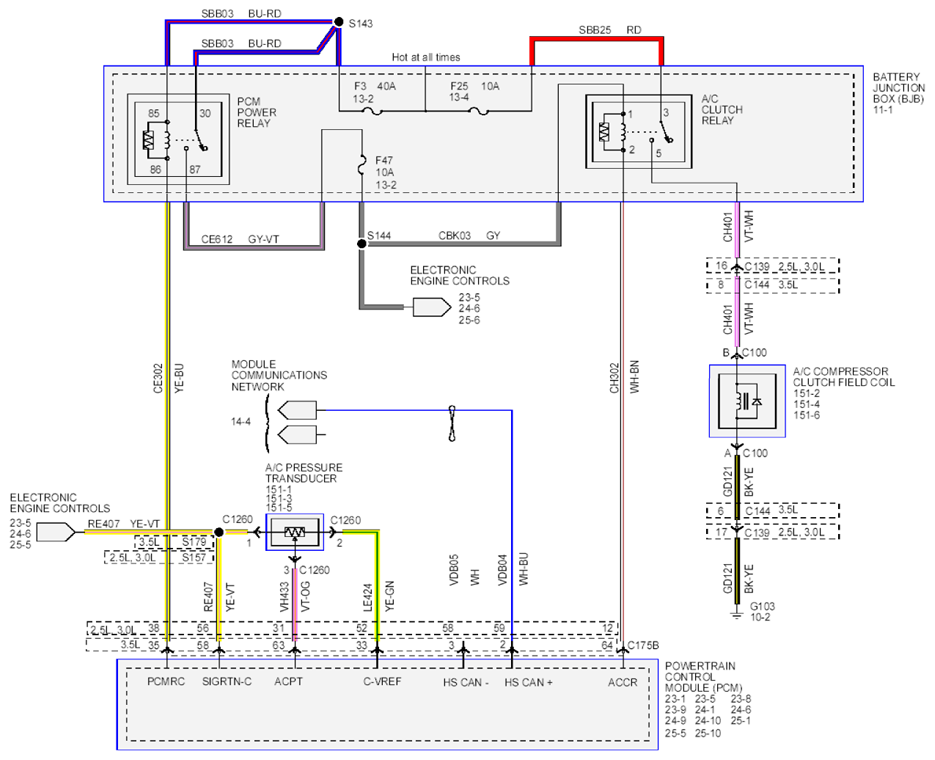

Fig 2: Automatic Climate Control System Schematic (2 Of 4)
Courtesy of FORD MOTOR CO.

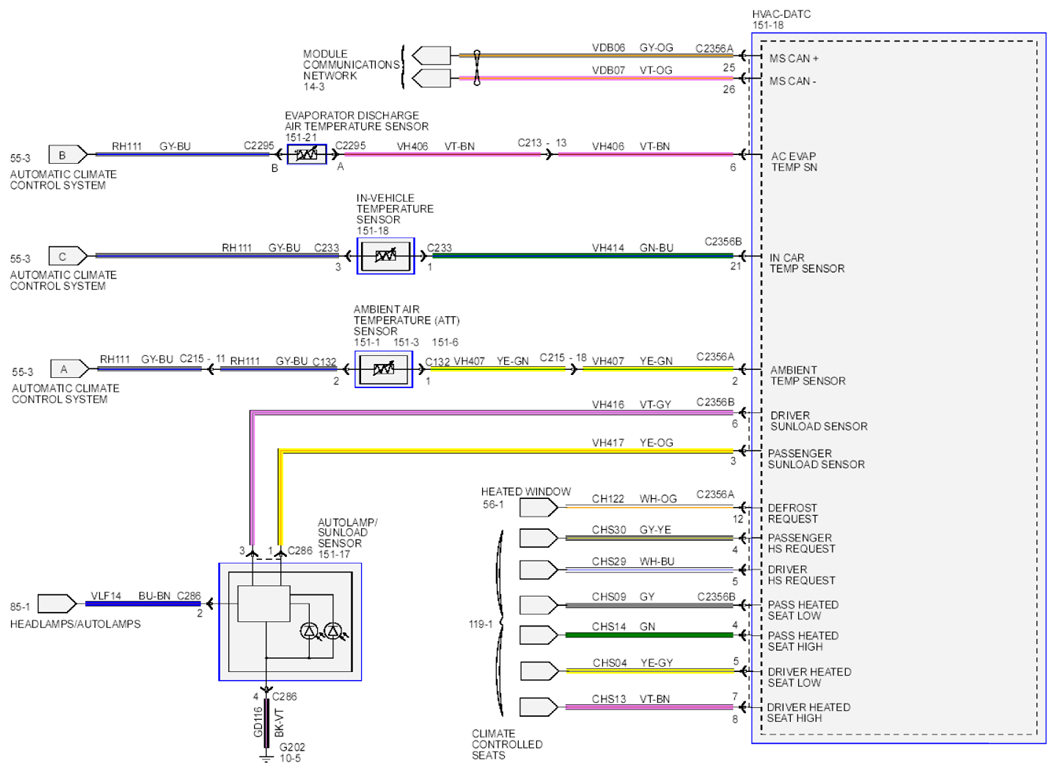

Fig 3: Automatic Climate Control System Schematic (3 Of 4)
Courtesy of FORD MOTOR CO.

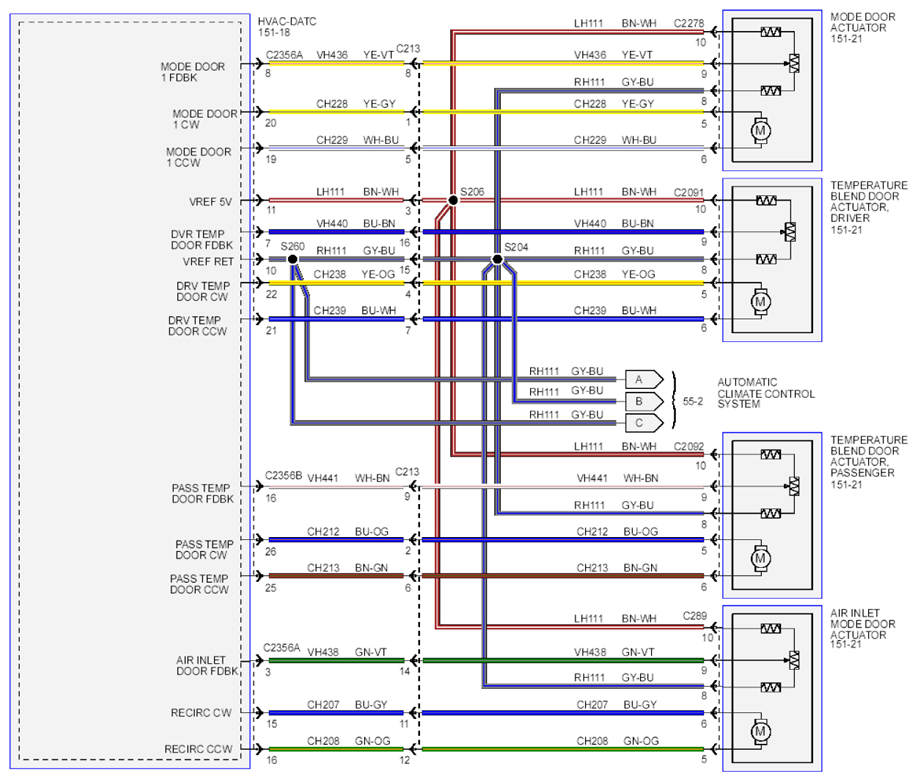

Fig 4: Automatic Climate Control System Schematic (4 Of 4)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
