Motors, Switches, Relays
>>
OEM Wiring Diagrams (Except Hybrid)
>>
Audio System_Navigation
>>
THX® Audio
THX® Audio

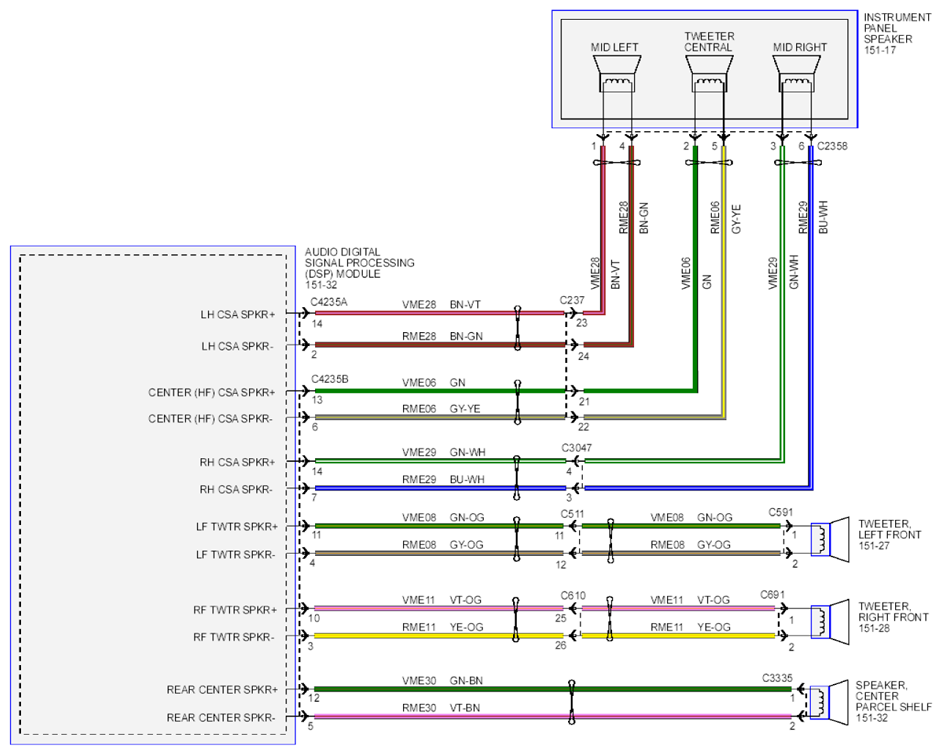

Fig 1: Audio System Navigation Schematic - THX® AUDIO (1 Of 3)
Courtesy of FORD MOTOR CO.

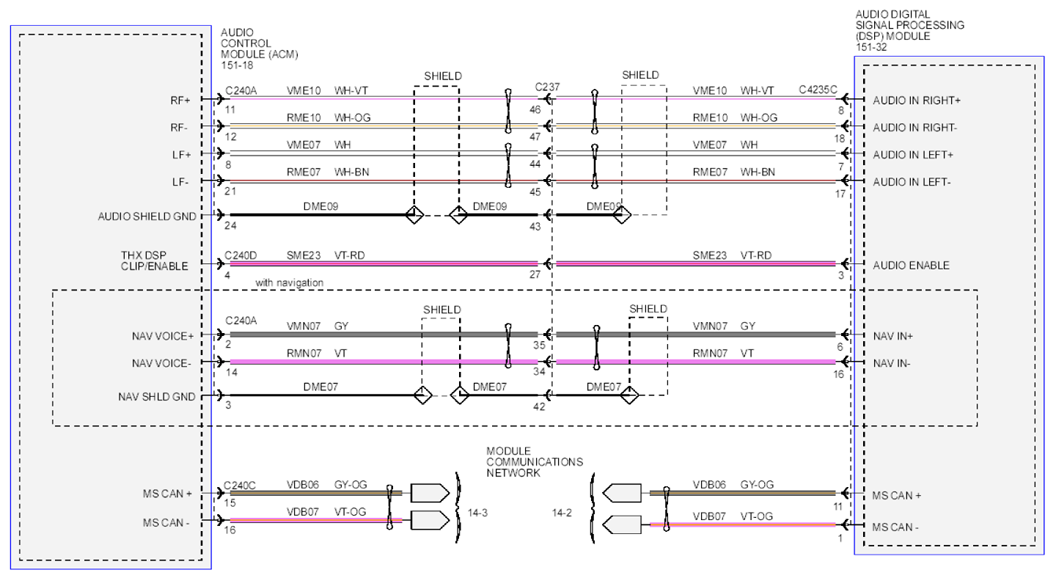

Fig 2: Audio System Navigation Schematic - THX® AUDIO (2 Of 3)
Courtesy of FORD MOTOR CO.

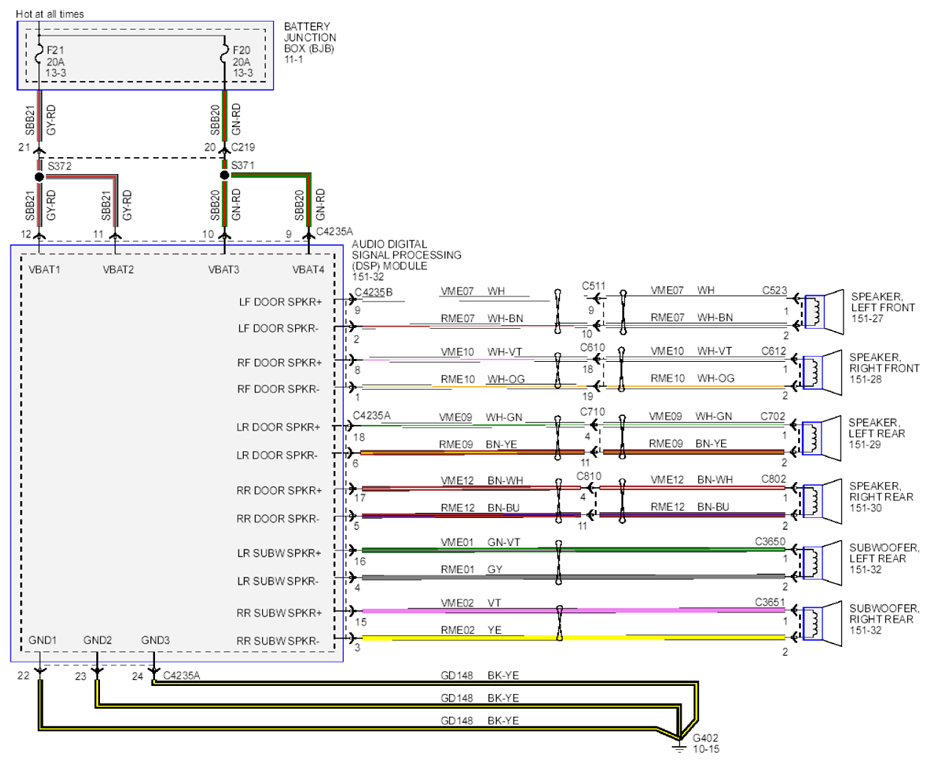

Fig 3: Audio System Navigation Schematic - THX® AUDIO (3 Of 3)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
