Audio System_Navigation: Sync

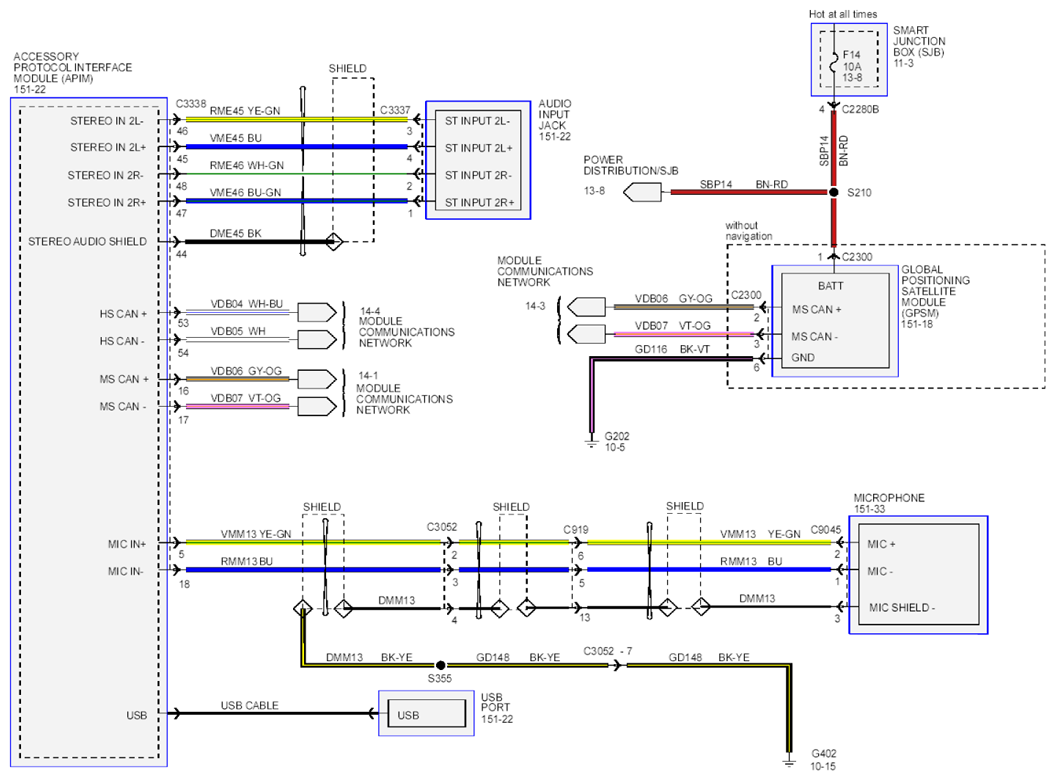

Fig 1: Audio System Navigation Schematic - SYNC (1 Of 3)
G07861564Courtesy of FORD MOTOR CO.

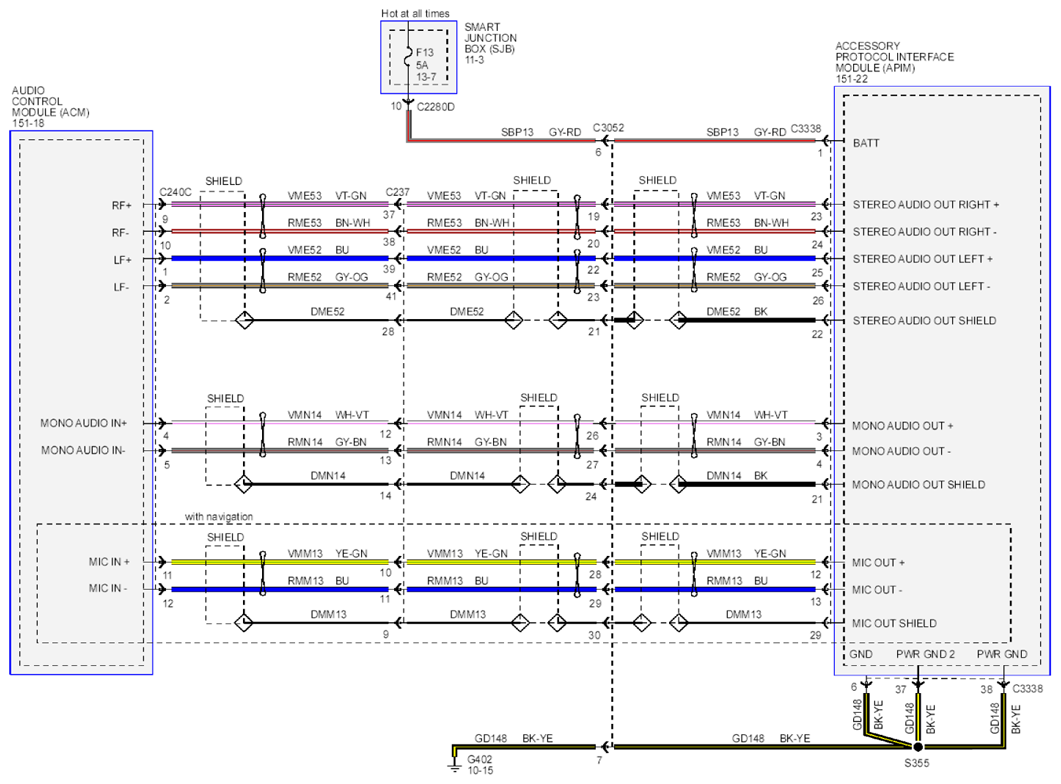

Fig 2: Audio System Navigation Schematic - SYNC (2 Of 3)
G07861565Courtesy of FORD MOTOR CO.

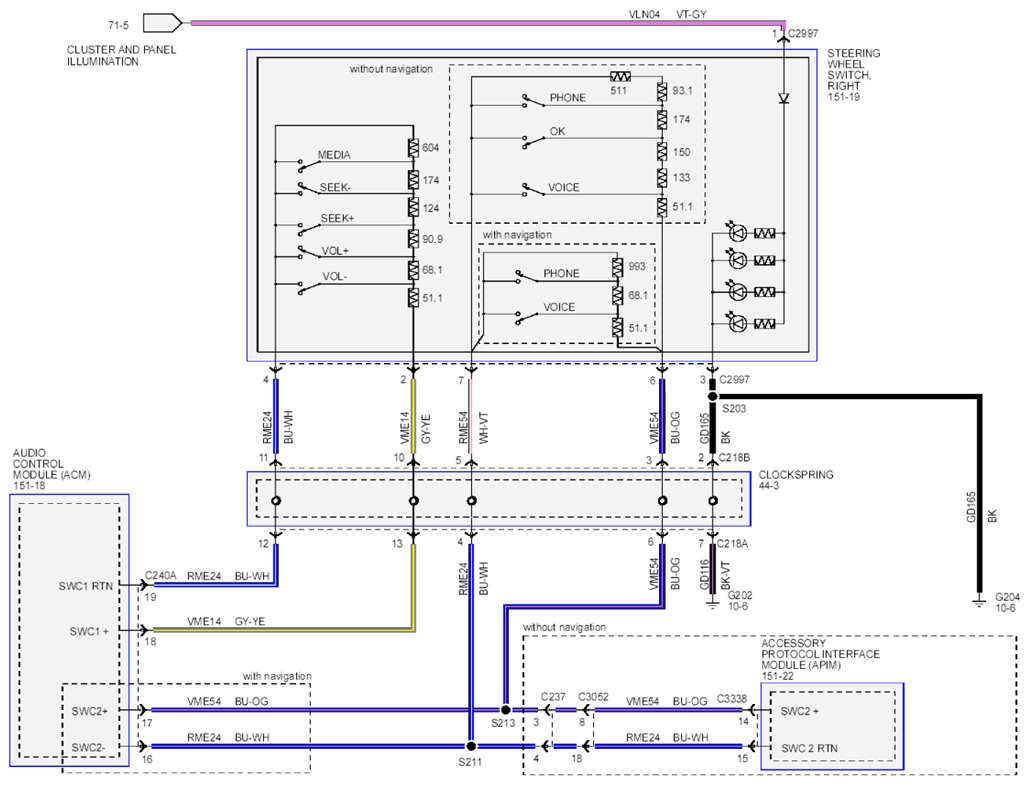

Fig 3: Audio System Navigation Schematic - SYNC (3 Of 3)
G07861566Courtesy of FORD MOTOR CO.
