Mercury
>>
2011
>>
Milan Base, Automatic
>>
Repair and Diagnosis
>>
Electrical
>>
Motors, Switches, Relays
>>
OEM Wiring Diagrams (Except Hybrid)
>>
Audio System_Navigation
>>
SONY® Audio
SONY® Audio

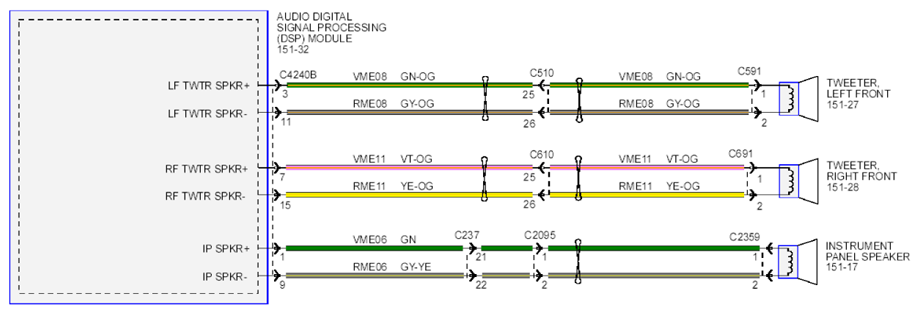

Fig 1: Audio System Navigation Schematic - Sony® Audio (1 Of 3)
Courtesy of FORD MOTOR CO.

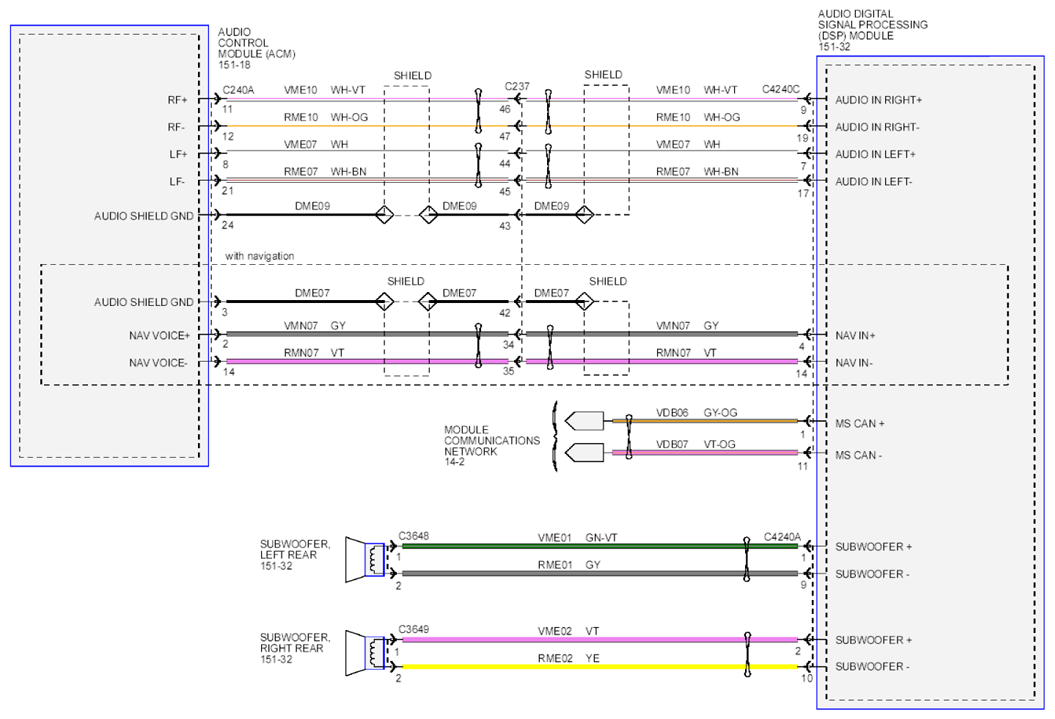

Fig 2: Audio System Navigation Schematic - Sony® Audio (2 Of 3)
Courtesy of FORD MOTOR CO.

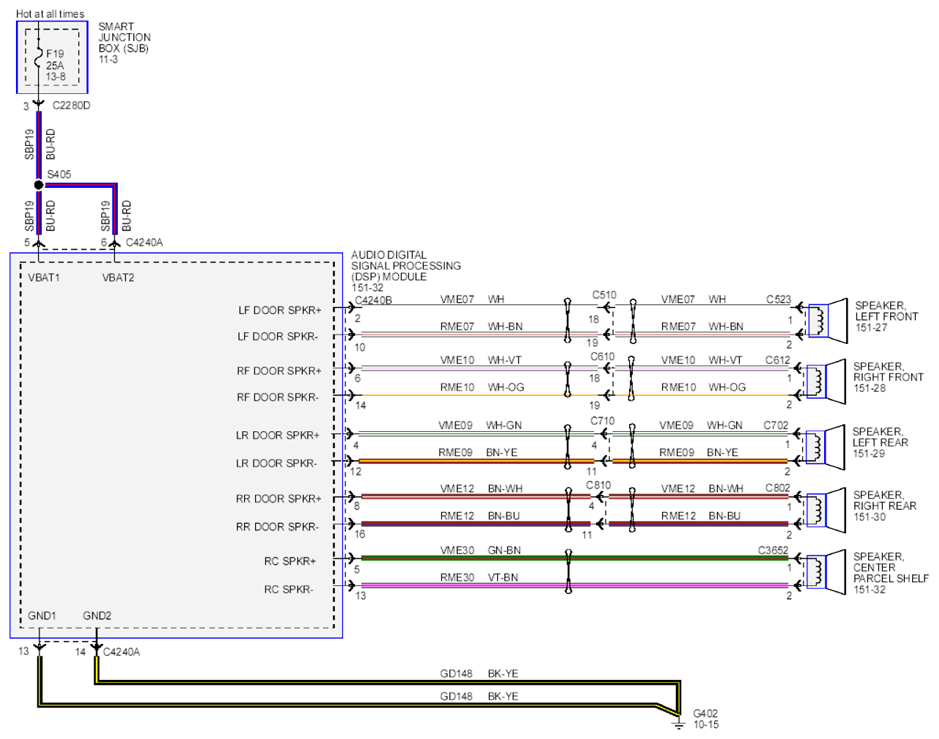

Fig 3: Audio System Navigation Schematic - Sony® Audio (3 Of 3)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
