Audio System_Navigation: Notes

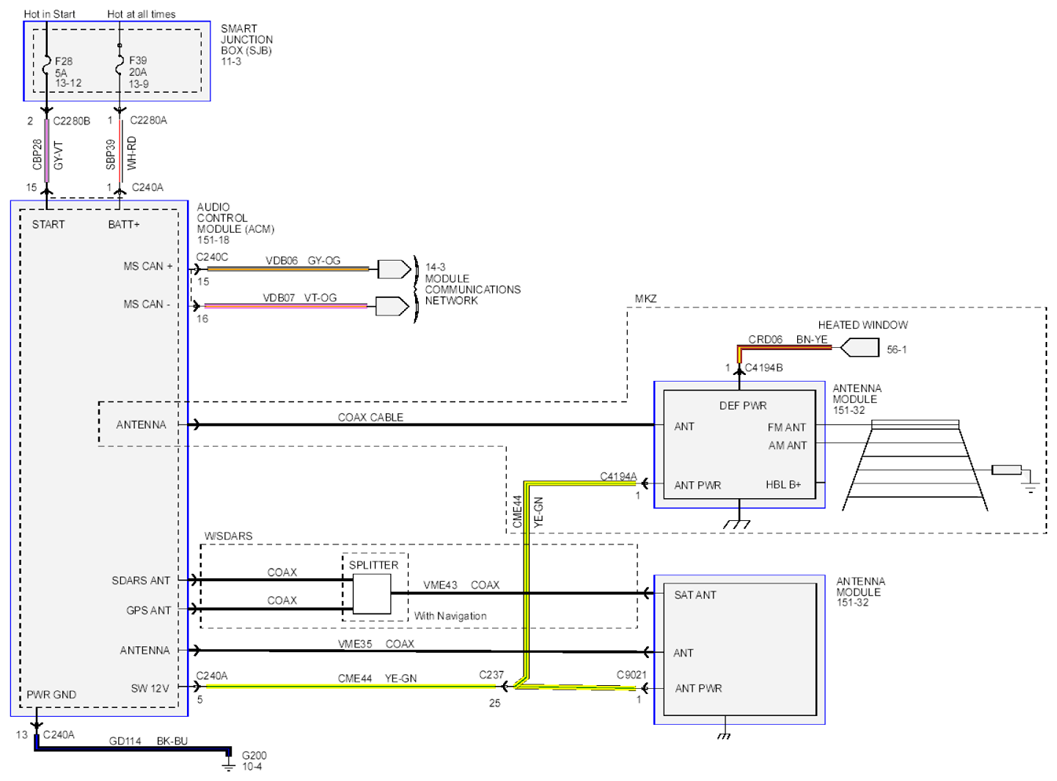

Fig 1: Audio System Navigation Schematic

G07861556

Courtesy of FORD MOTOR CO.
