Audio System_Navigation: Navigation

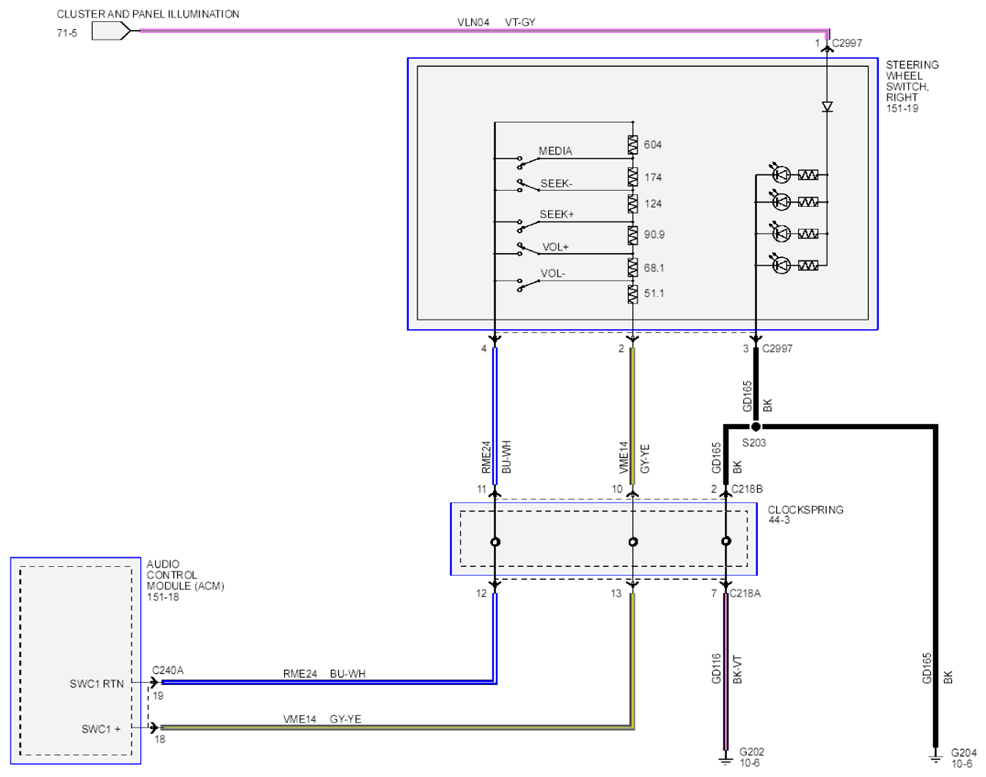

Fig 1: Audio System Navigation Schematic - Navigation (1 Of 3)
Courtesy of FORD MOTOR CO.

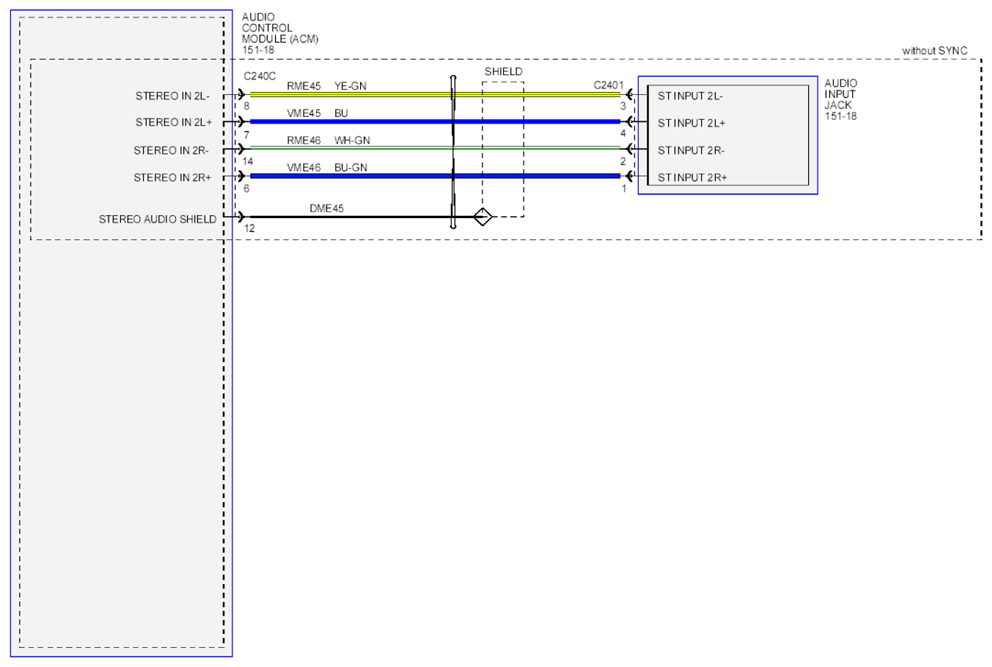

Fig 2: Audio System Navigation Schematic - Navigation (2 Of 3)
Courtesy of FORD MOTOR CO.

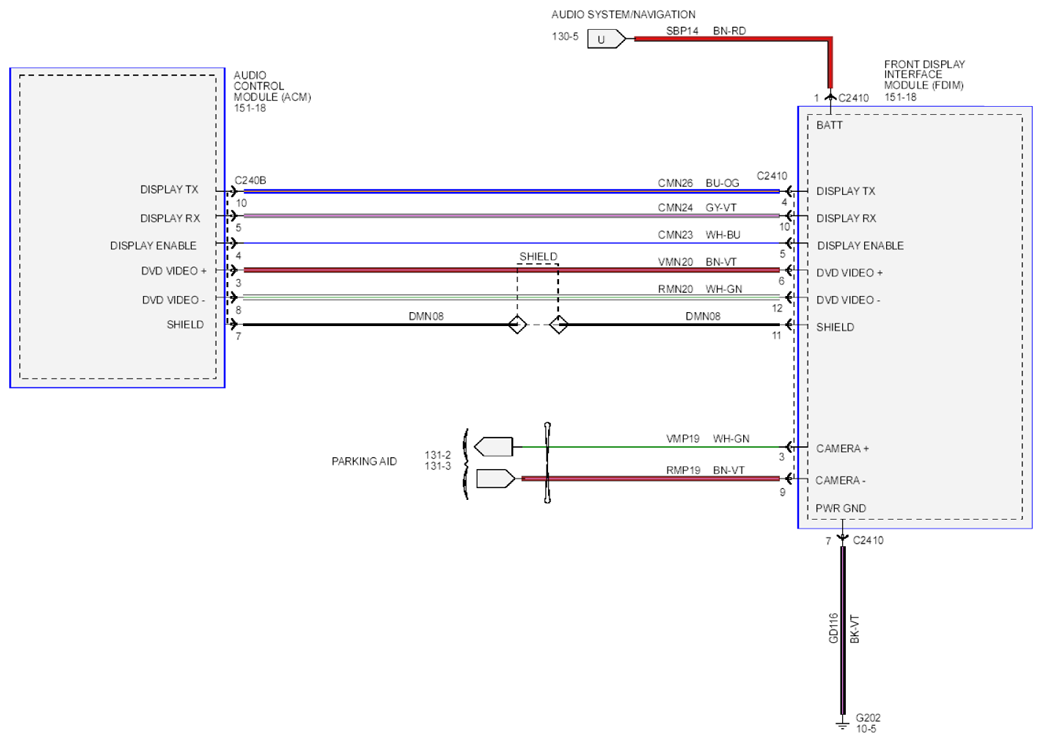

Fig 3: Audio System Navigation Schematic - Navigation (3 Of 3)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
