Audio System_Navigation
>>
Base - MILAN, Mid-Level
Base - MILAN, Mid-Level

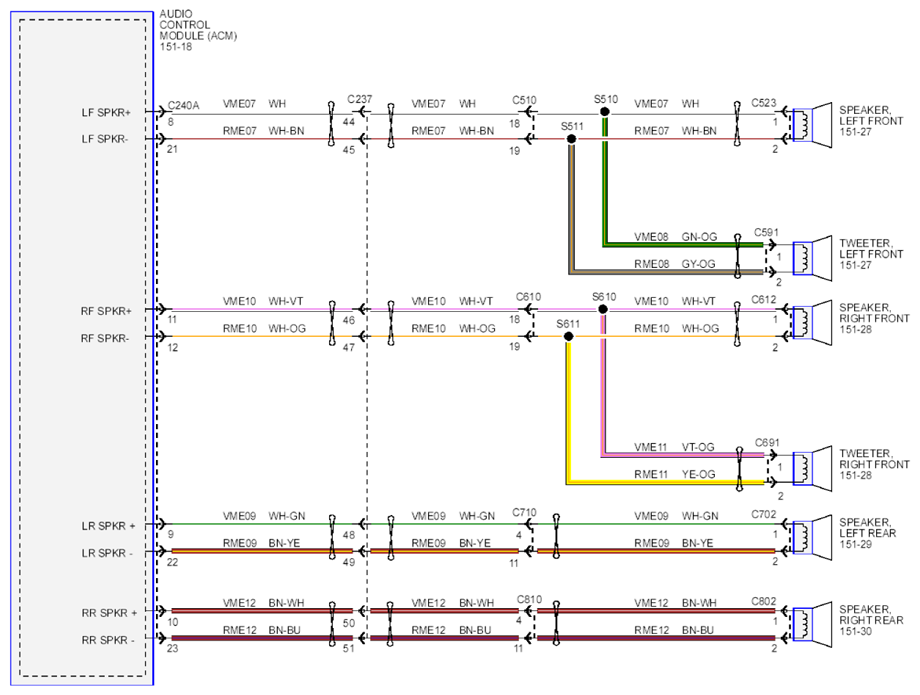

Fig 1: Audio System Navigation Schematic (Base - Milan, MID-Level)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
