Fuel Vapor Tube Assembly: Notes
WARNING: This page is about a different variant/trim than selected.

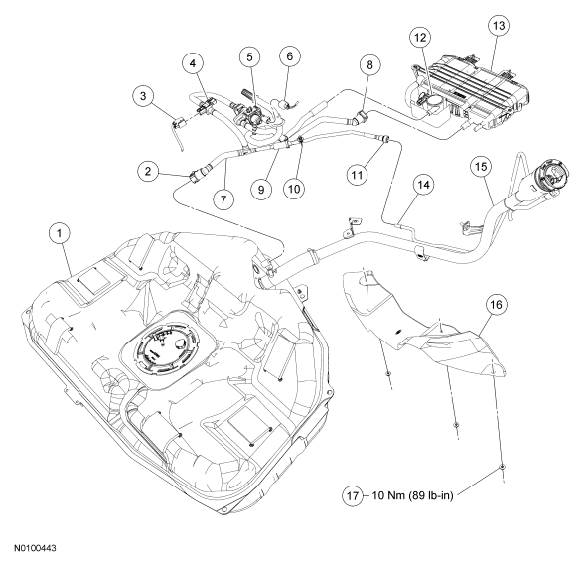

PART NUMBER DESCRIPTION TABLE
| Item | Part Number | Description |
|---|---|---|
| 1 | 9002 | Fuel tank |
| 2 | - | Fuel vapor tube assembly-to-fuel tank quick connect coupling (part of 9A228) |
| 3 | 14A464 | Fuel Tank Pressure (FTP) sensor electrical connector |
| 4 | 9C052 | FTP sensor (part of 9A228) |
| 5 | 9G712 | Vapor blocking valve (part of 9A228) |
| 6 | 14A464 | Vapor blocking valve electrical connector |
| 7 | 9A228 | Fuel vapor tube assembly |
| 8 | - | Fuel vapor tube assembly-to-Evaporative Emission (EVAP) canister quick connect coupling (part of 9A228) |
| 9 | - | Two-stage recirculation orifice (part of 9A228) |
| 10 | - | Fuel vapor tube assembly pin-type retainer (part of 9A228) |
| 11 | - | Fuel vapor tube-to-recirculation tube quick connect coupling (part of 9A228) |
| 12 | 9G676 | Fuel vapor solenoid and separator assembly (part of 9E857) |
| 13 | 9E857 | EVAP canister assembly |
| 14 | - | Fuel tank filler pipe recirculation tube (part of 9034) |
| 15 | 9034 | Fuel tank filler pipe |
| 16 | 5411268 | Fuel tank filler pipe heat shield |
| 17 | W707142 | Fuel tank filler pipe heat shield nut (3 required) |
