Cylinder-Block Mounted Knock Sensor (KS)

WARNING: This page is about a different variant/trim than selected.

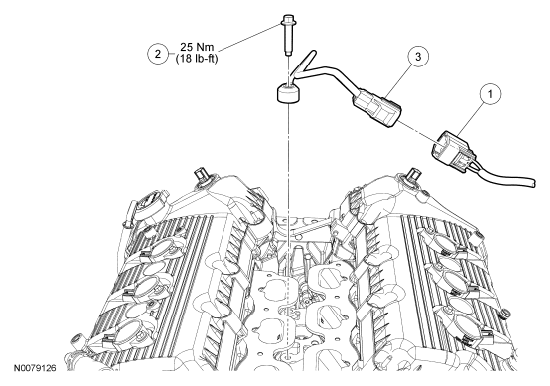

Fig 1: Identifying Cylinder Head-Mounted Knock Sensor (KS) Replacement Components With Torque Specifications
G06272581Courtesy of FORD MOTOR CO.
PART NUMBER DESCRIPTION TABLE

Item Part Number Description
1 14A464 Knock Sensor (KS) electrical connector
2 W500310 KS  bolt
3 12A699 KS
