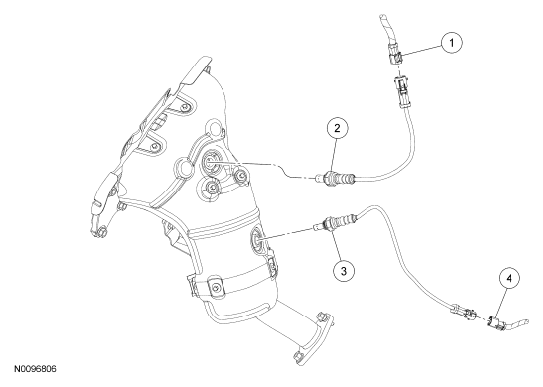

Heated Oxygen Sensor (HO2S) and Catalyst Monitor Sensor - Exploded View
WARNING: This page is about a different variant/trim than selected.
ITEM DESCRIPTION TABLE
| Item | Part Number | Description |
|---|---|---|
| 1 | 14A464 | Heated Oxygen Sensor (HO2S) electrical connector (part of 12C508) |
| 2 | 9F472 | HO2S |
| 3 | 9G444 | Catalyst Monitor Sensor (CMS) |
| 4 | 14A464 | CMS electrical connector (part of 12C508) |
- For additional information, refer to the appropriate procedure(s).
