Evaporative Emission Canister Vent Solenoid: Notes
WARNING: This page is about a different car, the 2007 Mercury Mariner and 2007 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
Material
| Item | Specification |
|---|---|
| Motorcraft SAE 5W-20 Premium Synthetic Blend Motor Oil XO-5W20-QSP (US); Motorcraft SAE 5W-20 Super Premium Motor Oil CXO-5W20-LSP12 (Canada); or equivalent |
WSS-M2C930-A |

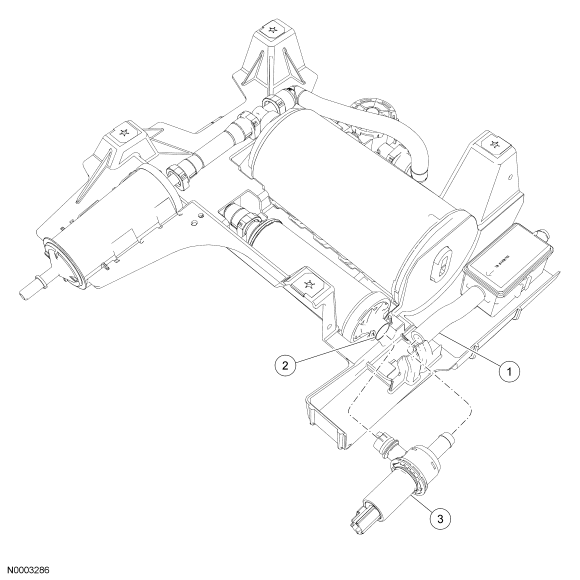

| Item | Part Number | Description |
|---|---|---|
| 1 | 9D676 | Fuel vapor hose |
| 2 | 9G723 | Evaporative emission (EVAP) hydrocarbon filter |
| 3 | 9F945 | EVAP canister vent solenoid |
