Auxiliary Evaporator Outlet and Inlet Line - Rear: Notes
WARNING: This page is about a different car, the 2007 Mercury Mariner and 2007 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
Material
| Item | Specification |
|---|---|
| PAG Refrigerant Compressor Oil (R134a Systems) YN-12-D |
WSH-M1C231-B |
NOTE:
A/C service lines shown.

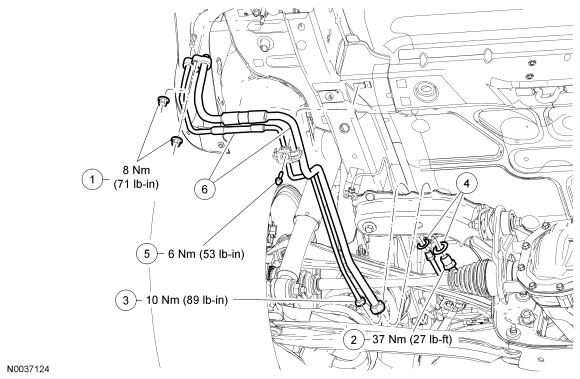

Fig 1: Exploded View Of Rear Auxiliary Evaporator Outlet and Inlet Line - Rear Connection With Torque Specifications
| Item | Part Number | Description |
|---|---|---|
| 1 | W520413 | Rear auxiliary evaporator outlet and inlet line rear fitting nuts (2 required) |
| 2 | - | Rear auxiliary evaporator outlet and inlet line tube-O fitting (service line only) |
| 3 | - | Rear auxiliary evaporator outlet and inlet line tube-O fitting (service line only) |
| 4 | 19E889 | O-ring seals (2 required) |
| 5 | W708060 | Rear auxiliary evaporator outlet and inlet line bracket bolt |
| 6 | 19A834 | Rear auxiliary evaporator outlet and inlet lines |
NOTE:
A/C service lines shown.

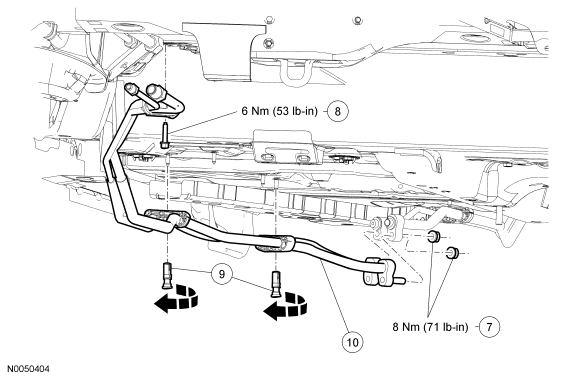

Fig 2: Exploded View Of Rear Auxiliary Evaporator Outlet and Inlet Line - Intermediate Connection With Torque Specifications
| Item | Part Number | Description |
|---|---|---|
| 7 | - | Intermediate auxiliary evaporator outlet and inlet line fitting nuts (2 required) |
| 8 | W708060 | Intermediate auxiliary evaporator outlet and inlet line bracket bolt |
| 9 | 18N332 | Intermediate auxiliary evaporator outlet and inlet line pin-type retainers (2 required) |
| 10 | 19A834 | Intermediate auxiliary evaporator outlet and inlet line |
