Auxiliary Evaporator Outlet and Inlet Line - Front: Notes
WARNING: This page is about a different car, the 2007 Mercury Mariner and 2007 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
Material
| Item | Specification |
|---|---|
| PAG Refrigerant Compressor Oil (R134a Systems) YN-12-D |
WSH-M1C231-B |

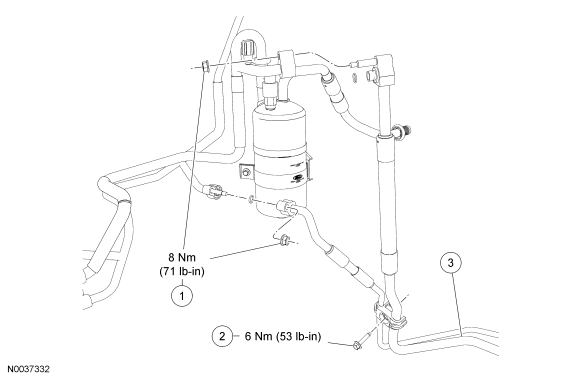

Fig 1: Exploded View Of Front Auxiliary Evaporator Outlet and Inlet Line - Front Connection With Torque Specifications
| Item | Part Number | Description |
|---|---|---|
| 1 | W520413 | Front auxiliary evaporator outlet and inlet line front fitting nuts (2 required) |
| 2 | W708060 | Front auxiliary evaporator outlet and inlet line bracket bolt |
| 3 | 19A834 | Front auxiliary evaporator outlet and inlet line set |
NOTE:
A/C service lines shown.

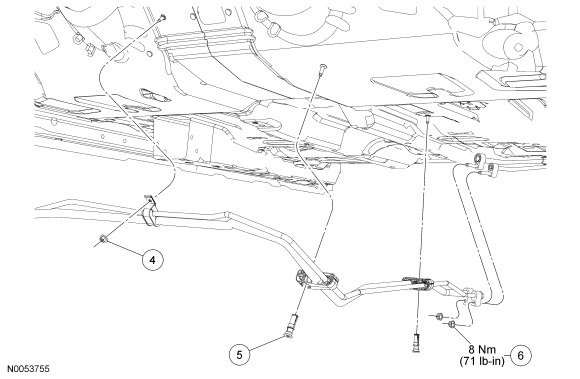

Fig 2: Exploded View Of Front Auxiliary Evaporator Outlet and Inlet Line - Intermediate Connection With Torque Specifications
| Item | Part Number | Description |
|---|---|---|
| 4 | W520832 | Auxiliary line bracket nut |
| 5 | 18N332 | Auxiliary line bracket retainer (2 required) |
| 6 | W520413 | Front auxiliary evaporator outlet and inlet line rear fitting nuts (2 required) |
