Evaporator Inlet Line - Orifice Tube: Notes
WARNING: This page is about a different car, the 2007 Mercury Mariner and 2007 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
Material
| Item | Specification |
|---|---|
| PAG Refrigerant Compressor Oil (R134a Systems) YN-12-D |
WSH-M1C231-B |

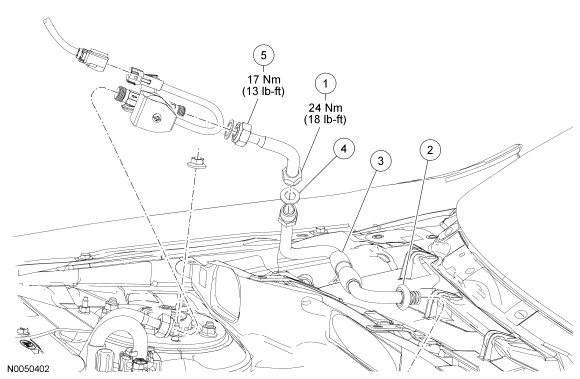

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Evaporator inlet line fitting nut |
| 2 | - | Evaporator inlet spring lock coupling |
| 3 | 19837 | Orifice tube evaporator inlet line |
| 4 | 19E889 | O-ring seal (4 required) |
| 5 | - | Passenger zone valve fitting nut |
