Condenser to Evaporator Line - Hybrid : Notes
WARNING: This page is about a different car, the 2007 Mercury Mariner and 2007 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
Material
| Item | Specification |
|---|---|
| PAG Refrigerant Compressor Oil (R134a Systems) YN-12-D |
WSH-M1C231-B |

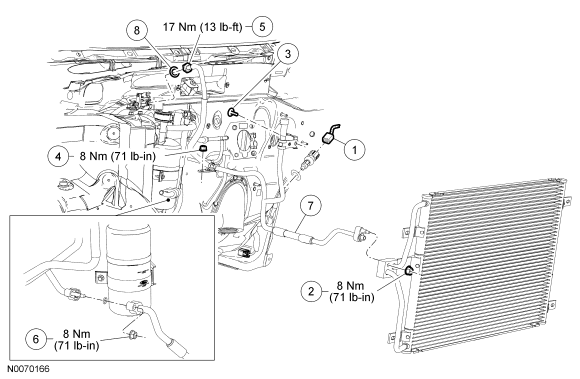

| Item | Part Number | Description |
|---|---|---|
| 1 | 14290 | High-pressure cutoff switch electrical connector |
| 2 | W520413 | Condenser outlet fitting nut |
| 3 | - | Pin-type retainer |
| 4 | W707142 | Condenser-to-evaporator line bracket nut |
| 5 | - | Passenger zone valve fitting nut (part of 19837) |
| 6 | W520413 | Front auxiliary evaporator inlet line front fitting nut |
| 7 | 19837 | Condenser-to-evaporator line |
| 8 | 19E889 | O-ring |
