Condenser to Evaporator Line - 2.3L and 3.0L: Notes
WARNING: This page is about a different car, the 2007 Mercury Mariner and 2007 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
Material
| Item | Specification |
|---|---|
| PAG Refrigerant Compressor Oil (R134a Systems) YN-12-D |
WSH-M1C231-B |

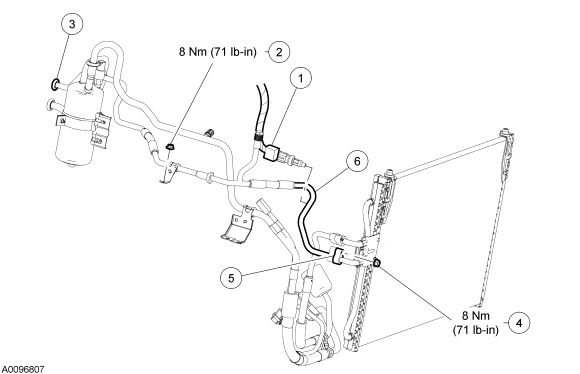

| Item | Part Number | Description |
|---|---|---|
| 1 | - | High-pressure cutoff switch electrical connector |
| 2 | W707142 | Condenser-to-evaporator line bracket nut |
| 3 | - | Spring lock coupling |
| 4 | W520413 | Condenser core outlet fitting nut |
| 5 | W520413 | Evaporator inlet spring lock coupling |
| 6 | 19N651 | Condenser-to-evaporator line |
