Removal and Installation

WARNING: This page is about a different car, the 2005 Ford Pickup, 2005 Ford F550 Super Duty, 2005 Ford F450 Super Duty, and 2005 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Remove the rear door window garnish moulding. For additional information, refer to MOULDING - WINDOW GARNISH, REAR DOOR, SUPERCAB in this article.
Remove the screws and the scrivets.

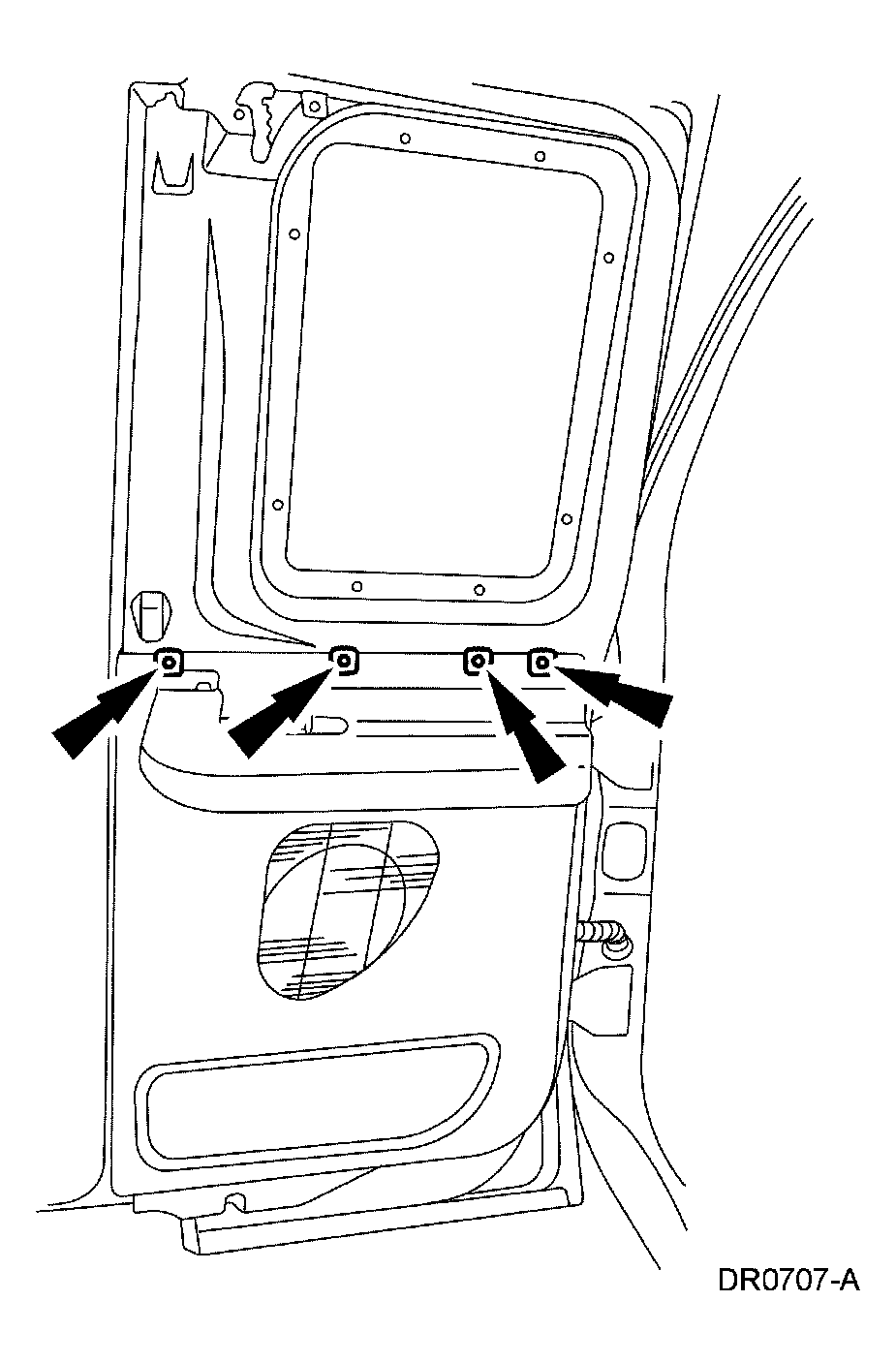

Fig 1: Removing Rear Door Trim Panel Screws And Scrivets - SuperCab
Courtesy of FORD MOTOR CO.

CAUTION: Do not pull directly outward on rear door trim panel, as damage will occur.

Pull straight up to remove the rear door trim panel.

CAUTION: Insert the lower panel tabs first or they can break when installing the rear door trim panel.

To install, reverse the removal procedure.
