Removal and Installation

WARNING: This page is about a different car, the 2005 Ford Pickup, 2005 Ford F550 Super Duty, 2005 Ford F450 Super Duty, and 2005 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Remove the window regulator switch housing.
- If equipped with power windows, disconnect the electrical connector.
If equipped, remove the window regulator handle.
Remove the panel reflector.

Fig 1: Removing Panel Reflector
Courtesy of FORD MOTOR CO.
Remove the screws.

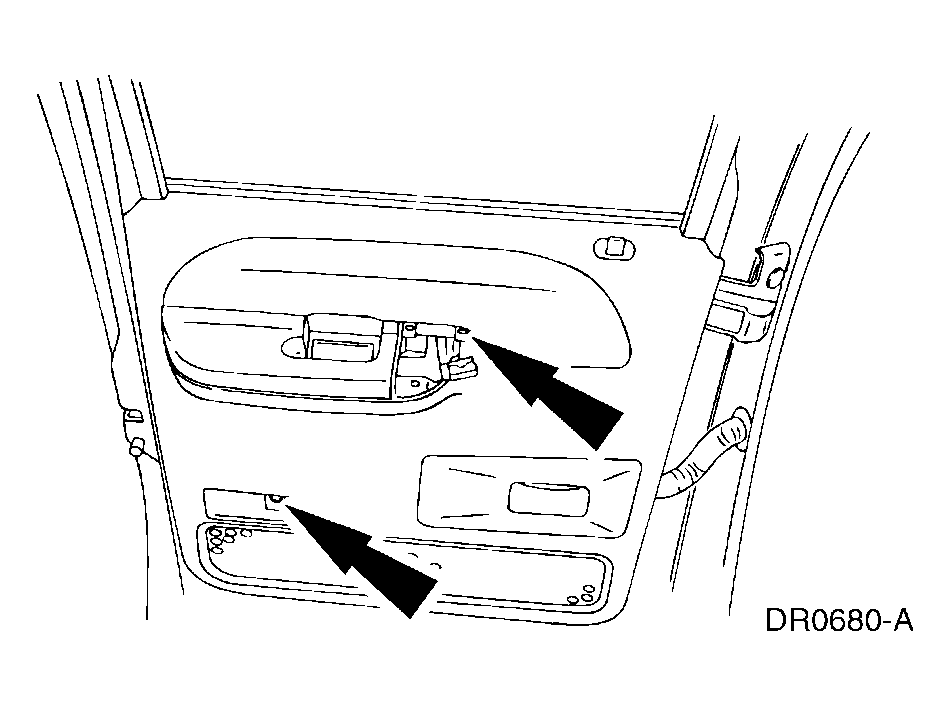

Fig 2: Removing Rear Door Trim Panel Screws - Crew Cab
Courtesy of FORD MOTOR CO.

CAUTION: Do not pull directly outward on rear door trim panel, as damage will occur.

NOTE: Remove the rear door trim panel by pulling it straight upward.

Lift and remove the rear door trim panel.

CAUTION: Insert the lower panel tabs first or they can break when installing the rear door trim panel.

To install, reverse the removal procedure.
