Removal and Installation

WARNING: This page is about a different car, the 2005 Ford Pickup, 2005 Ford F550 Super Duty, 2005 Ford F450 Super Duty, and 2005 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the screws to the rear window latch. For additional information, refer to GLASS, FRAMES AND MECHANISMS .
  2. Position the latch out of the way.
    3. NOTE: The weatherstrip must be removed. It is fastened on top by a push pin.

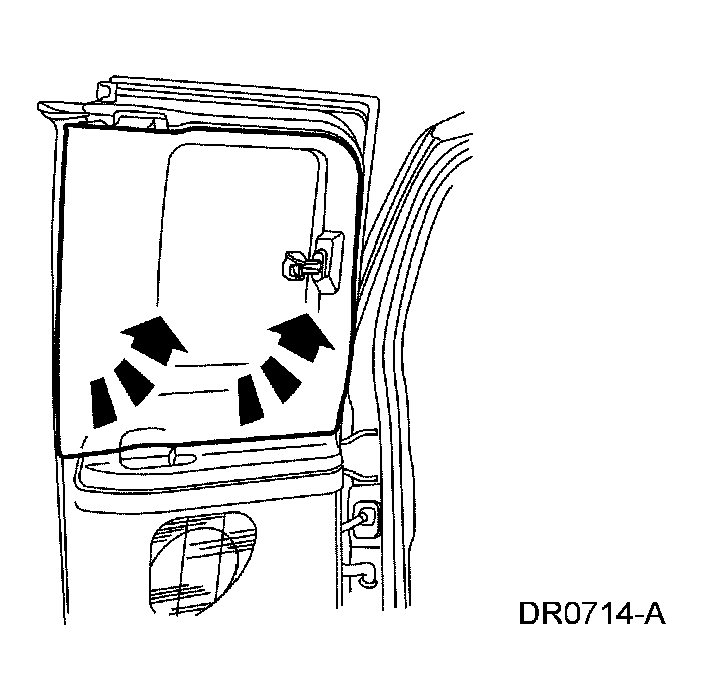

    Fig 1: Removing Weatherstrip
    G03925271Courtesy of FORD MOTOR CO.
  3. Pry the moulding to remove.
  4. To install, reverse the removal procedure.
