Removal and Installation

WARNING: This page is about a different car, the 2006 Mercury Montego, 2006 Ford Freestyle, and 2006 Ford Five Hundred. However, it is still accessible from the selected car via links, so may be relevant.

Remove the evaporative emission (EVAP) canister. For additional information, refer to EVAPORATIVE EMISSION CANISTER .
Remove the EVAP canister vent tube-to-EVAP canister vent solenoid.

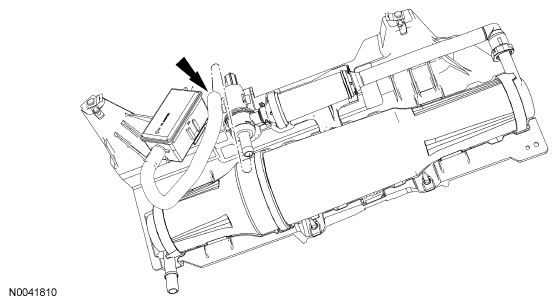

Fig 1: Removing EVAP Canister Vent Tube-To-EVAP Canister Vent Solenoid
Courtesy of FORD MOTOR CO.
Release the EVAP canister vent solenoid from the carbon canister and remove from the EVAP canister assembly.

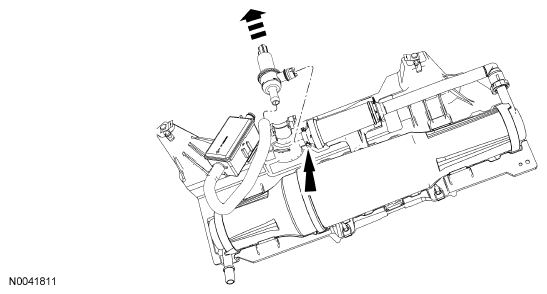

Fig 2: Removing EVAP Canister Assembly
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
- Apply clean engine oil to the EVAP canister vent solenoid O-ring seal.
