Removal and Installation

WARNING: This page is about a different car, the 2005 Ford Pickup, 2005 Ford F550 Super Duty, 2005 Ford F450 Super Duty, and 2005 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Suspension fasteners are critical components because they affect performance of vital components and systems and their failure can result in major service expense. Install new components with the same component number or an equivalent component if installation is necessary. Do not use an installation component of lesser quality or substitute design. Torque values must be used as specified during reassembly to make sure of correct retention of these components.
CAUTION: The low pressure gas shock absorbers are charged with nitrogen gas. Do not attempt to open, puncture or apply heat to shock absorbers.
NOTE: Super Duty F-250, F-350 Ford axle shown, Super Duty F-350 Dana axle similar.
  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING AND LIFTING .
  2. Using a suitable jack, support the rear axle.
  3. Remove the shock absorber lower retaining nut and bolt.

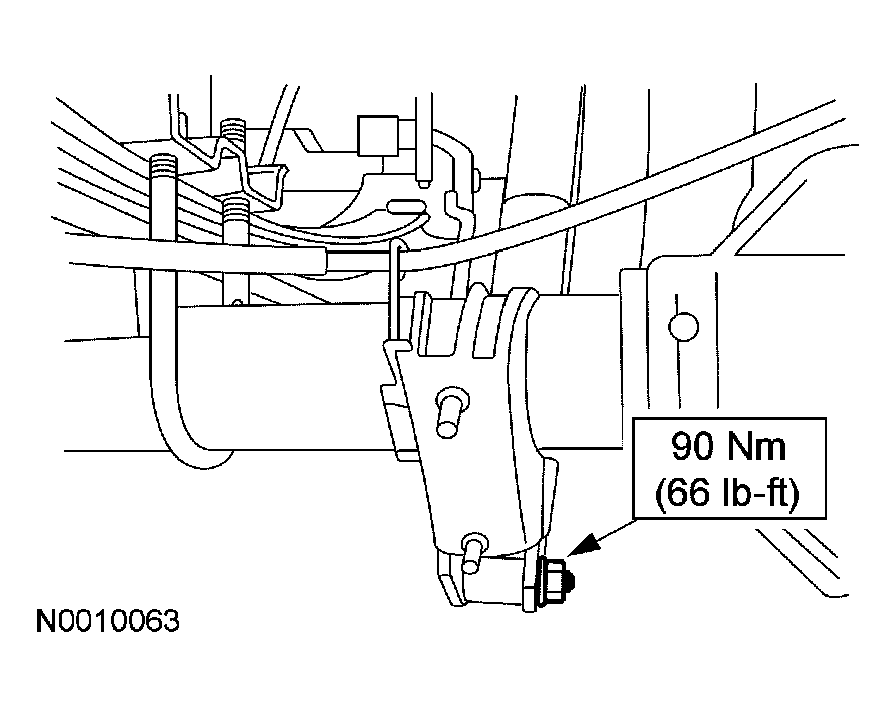

    Fig 1: Removing/Installing Shock Absorber Lower Retaining Nut And Bolt
    G03917920Courtesy of FORD MOTOR CO.
  4. Remove the nut from the upper shock absorber mounting bracket and remove the shock.
    Fig 2: Removing/Installing Nut From Upper Shock Absorber Mounting Bracket
    G03917921Courtesy of FORD MOTOR CO.
  5. To install, follow the removal procedure in reverse order, using new fasteners.
