Removal and Installation
WARNING: This page is about a different car, the 2005 Mercury Montego, 2005 Ford Freestyle, and 2005 Ford Five Hundred. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
- Disconnect the evaporative emission (EVAP) canister purge valve electrical connector.
- Disconnect the 2 vapor tube-to-EVAP canister purge valve quick connect couplings. For additional information, refer to FUEL SYSTEM-GENERAL INFORMATION .

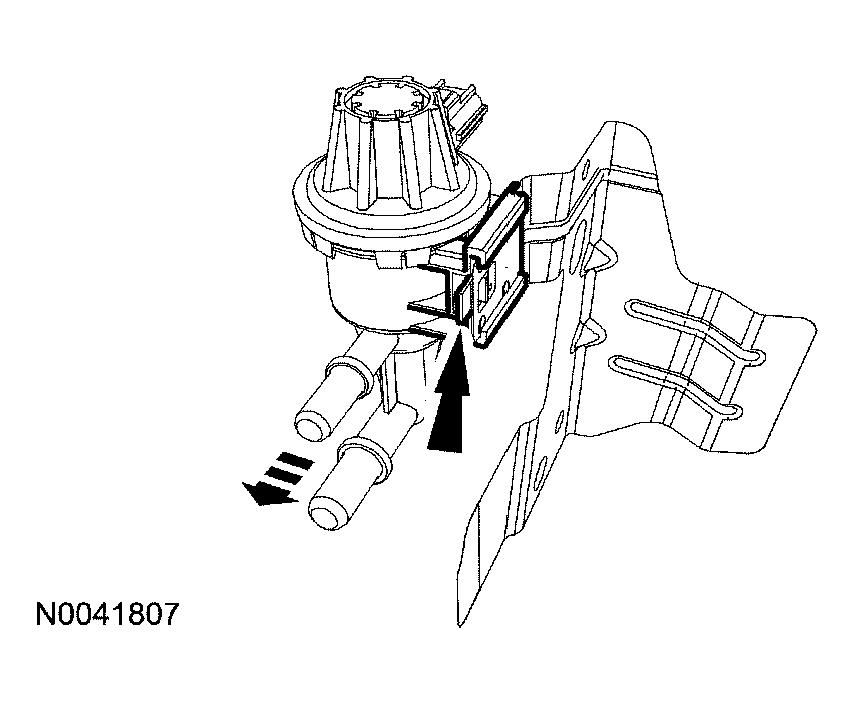

- Depress the retaining tab to release and remove the EVAP canister purge valve from the retaining bracket.
- To install, reverse the removal procedure.
- Leak test the system. For additional information, refer to EVAPORATIVE EMISSION SYSTEM LEAK TEST .
- Carry out the evaporative emission repair verification drive cycle. For additional information, refer to the INTRODUCTION - GASOLINE article .
