Removal and Installation

WARNING: This page is about a different car, the 2010 Mercury Mariner and 2010 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

Reposition the front door glass run to gain access to the window molding rivet.

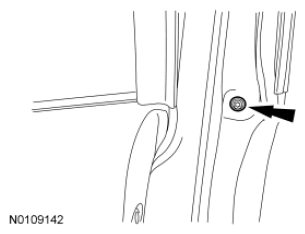

Fig 1: Locating Front Door Glass
Courtesy of FORD MOTOR CO.
Remove the front door outer belt molding screw.

Fig 2: Locating Front Door Outer Belt Molding Screw
Courtesy of FORD MOTOR CO.
Pull upward on the rear of the outer belt molding to gain access to the window molding rivet.

Fig 3: Locating Window Molding Rivet
Courtesy of FORD MOTOR CO.
Drill out the window molding rivets.

Fig 4: Locating Window Molding Rivets
Courtesy of FORD MOTOR CO.
Remove the window molding.
To install, reverse the removal procedure.
