Radiator Grille: Notes
WARNING: This page is about a different car, the 2010 Mercury Mariner and 2010 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

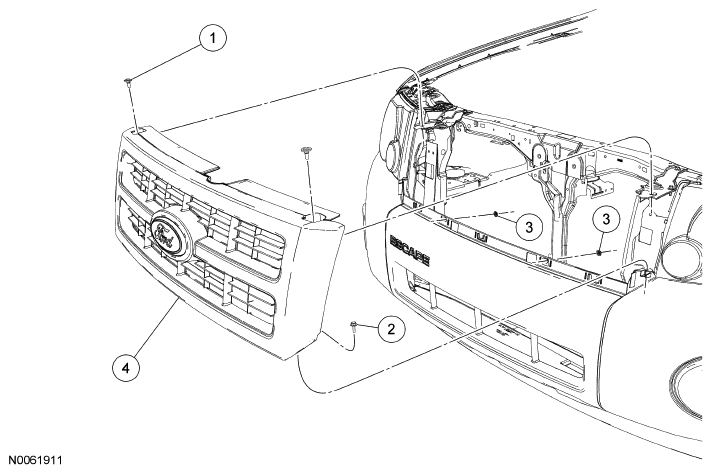

ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | W710794 | Radiator grille screw (2 required) |
| 2 | W704874 | Radiator grille-to-fascia screw (2 required) |
| 3 | 17750C | Radiator grille-to-fascia pinch nuts (2 required) |
| 4 | 8200 | Radiator grille |

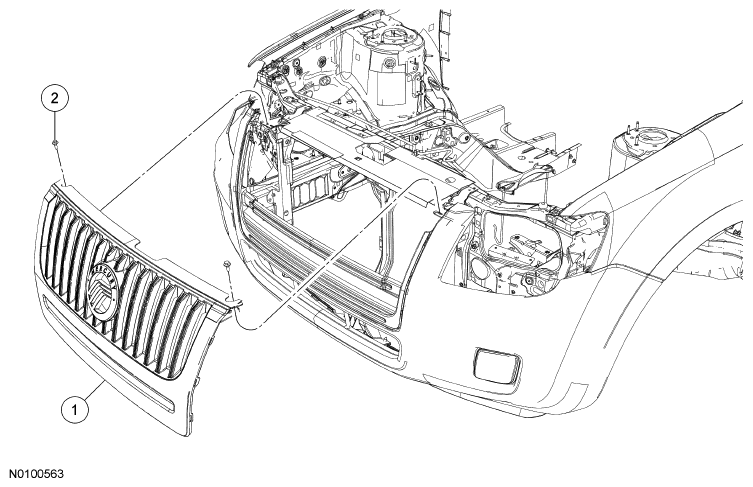

ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | 8200 | Radiator grille |
| 2 | W710794 | Radiator grille screw |
