Fuel Vapor Vent Valve: Notes
WARNING: This page is about a different car, the 2010 Mercury Mariner and 2010 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

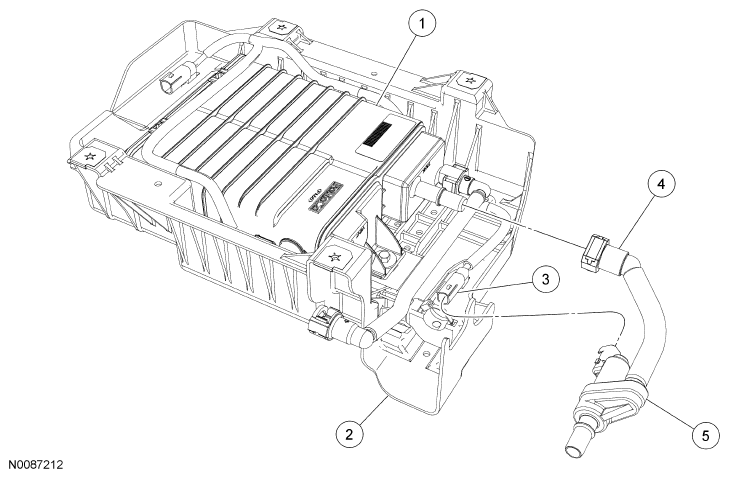

ITEM DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Evaporative Emission (EVAP) canister (part of 9E857) |
| 2 | - | EVAP canister tray (part of 9E857) |
| 3 | - | Fuel vapor vent valve electrical connector (part of 14C018) |
| 4 | - | Fuel vapor vent valve-to- EVAP canister quick connect coupling (part of 9G712) |
| 5 | 9G712 | Fuel vapor vent valve |
