Removal and Installation

WARNING: This page is about a different car, the 2010 Mercury Mariner and 2010 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Do not smoke, carry lighted tobacco or have an open flame of any type when working on or near any fuel-related component. Highly flammable mixtures are always present and may be ignited. Failure to follow these instructions may result in serious personal injury.
WARNING: Do not carry personal electronic devices such as cell phones, pagers or audio equipment of any type when working on or near any fuel-related component. Highly flammable mixtures are always present and may be ignited. Failure to follow these instructions may result in serious personal injury.
WARNING: Always disconnect the battery ground cable at the battery when working on an evaporative emission (EVAP) system or fuel-related component. Highly flammable mixtures are always present and may be ignited. Failure to follow these instructions may result in serious personal injury.
  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
  2. Disconnect the battery ground cable. For additional information, refer to BATTERY DISCONNECT .
  3. Position the Powertrain Lift under the fuel tank.

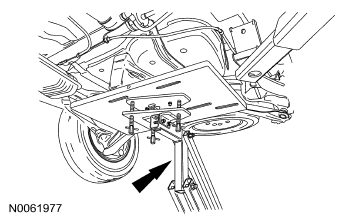

    Fig 1: Locating Powertrain Lift Under Fuel Tank
    G06096734Courtesy of FORD MOTOR CO.
  4. Remove the bolt and position the LH fuel tank strap aside.
    • To install, tighten to 55 Nm (41 lb-ft).
  5. Partially lower the LH side of the fuel tank enough to access the fuel vapor tube assembly.
  6. Disconnect the Fuel Tank Pressure (FTP) sensor electrical connector.
  7. Disconnect the fuel vapor tube assembly-to-fuel tank quick connect coupling. For additional information, refer to QUICK CONNECT COUPLING .
  8. Disconnect the fuel vapor tube assembly-to-fuel vapor vent valve quick connect coupling. For additional information, refer to QUICK CONNECT COUPLING .
  9. Remove the fuel vapor tube assembly.
  10. To install, reverse the removal procedure.
