Evaporator Inlet Line - Hybrid: Material
WARNING: This page is about a different car, the 2010 Mercury Mariner and 2010 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| Motorcraft® Electric A/C Compressor Oil YN-32 |
- |

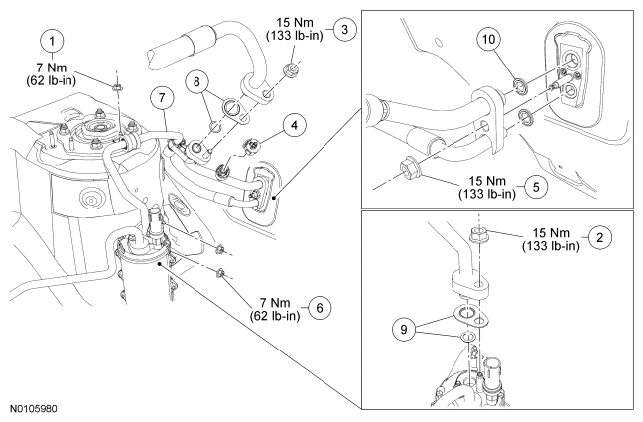

ITEM DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | W707137 | Evaporator inlet line bracket nut |
| 2 | W520413 | Receiver/drier outlet fitting nut |
| 3 | W520413 | Evaporator outlet line fitting nut |
| 4 | - | Low charge protection switch electrical connector (part of 14290) |
| 5 | W520413 | Thermostatic Expansion Valve (TXV) fitting nut |
| 6 | W707137 | Receiver/drier nut (2 required) |
| 7 | 19835 | Evaporator inlet line |
| 8 | 19B596 | O-ring seal and gasket seal kit |
| 9 | 19B596 | O-ring seal and gasket seal kit |
| 10 | 19B596 | TXV fitting gasket seal (2 pieces from kit required) |
