Evaporator Inlet Line - 2.5L, 3.0L (4V): Material
WARNING: This page is about a different car, the 2010 Mercury Mariner and 2010 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| PAG Refrigerant Compressor Oil (R-134a Systems) YN-12-D |
WSH-M1C231-B |

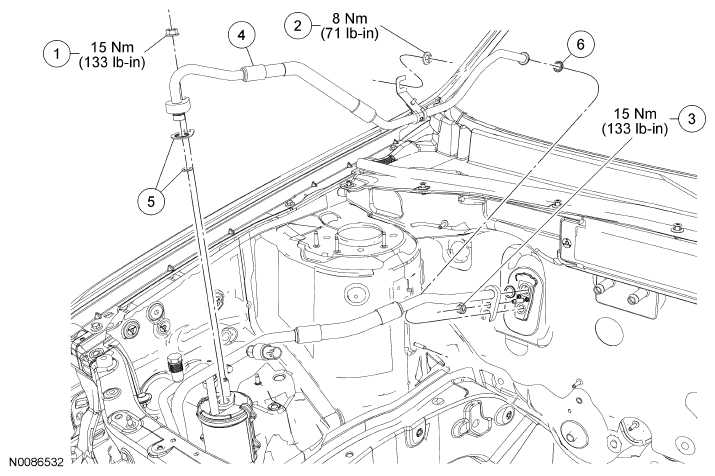

ITEM DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | W520413 | Receiver/drier outlet fitting nut |
| 2 | W711470 | Evaporator inlet line bracket nut |
| 3 | W520413 | Thermostatic Expansion Valve (TXV) fitting nut |
| 4 | 19835 | Evaporator inlet line |
| 5 | 19B596 | O-ring and gasket seal kit |
| 6 | 19B596 | TXV fitting gasket seal kit (2 pieces from kit required) |
