Fuel Injector
WARNING: This page is about a different car, the 2010 Mercury Mariner and 2010 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

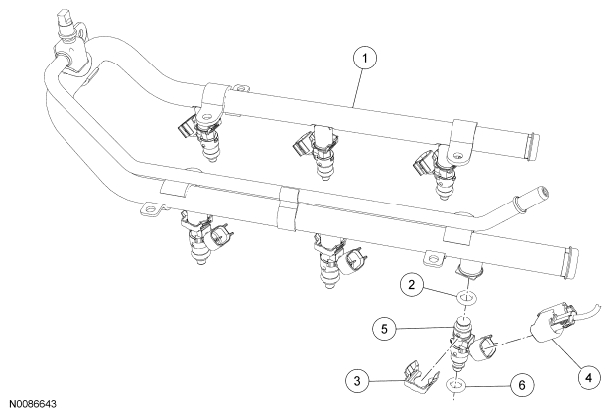

ITEM DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | 9F972 | Fuel rail |
| 2 | 9U509 | Upper fuel injector O-ring seal (6 required) |
| 3 | 9C995 | Fuel injector clip (6 required) |
| 4 | - | Fuel injector electrical connector (part of 14A485) (6 required) |
| 5 | 9F593 | Fuel injector (6 required) |
| 6 | 9U509 | Lower fuel injector O-ring (6 required) |
- For additional information, refer to the appropriate procedure(s).
