Fuel Injector
WARNING: This page is about a different car, the 2010 Mercury Mariner and 2010 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

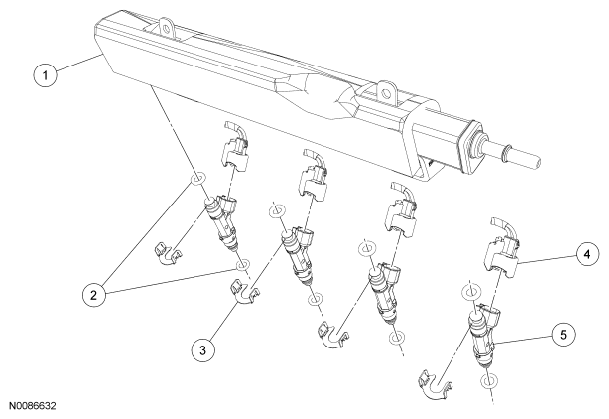

ITEM DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | 9H487 | Fuel rail |
| 2 | 9U509 | Fuel injector O-ring seals (2 required per injector) |
| 3 | 9C995 | Fuel injector clip (4 required) |
| 4 | 14A464 | Fuel injector electrical connector (4 required) |
| 5 | 9F593 | Fuel injector (4 required) |
- For additional information, refer to the appropriate procedure(s).
