Radiator Hoses
WARNING: This page is about a different car, the 2010 Mercury Mariner and 2010 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

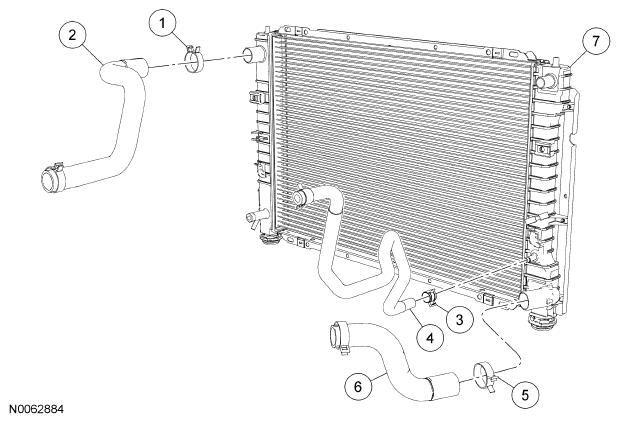

Courtesy of FORD MOTOR CO. ITEM DESCRIPTION CHART
| Item |
Part Number |
Description |
| 1 |
W527372 |
Upper radiator hose clamp |
| 2 |
8B274 |
Upper radiator hose |
| 3 |
W525853 |
Degas bottle-to-radiator hose clamp |
| 4 |
8C633 |
Degas bottle-to-radiator hose |
| 5 |
W527372 |
Lower radiator hose clamp |
| 6 |
8B273 |
Lower radiator hose |
| 7 |
8005 |
Radiator |
