Removal and Installation

WARNING: This page is about a different car, the 2010 Mercury Mariner and 2010 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
  2. Remove the pin-type retainer, 5 bolts and the RH lower splash shield.
    • To install, tighten to 9 Nm (80 lb-in).
  3. Rotate the accessory drive belt tensioner counterclockwise and remove the accessory drive belt.
    4. NOTE: Refer to the illustration for correct drive belt routing.

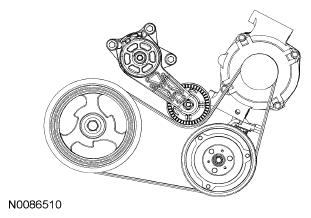

    Fig 1: Identifying Accessory Drive Belt Tensioner
    G06096657Courtesy of FORD MOTOR CO.
  4. To install, reverse the removal procedure.
