Exterior Front Door Handle: Notes

WARNING: This page is about a different car, the 2010 Mercury Mariner and 2010 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

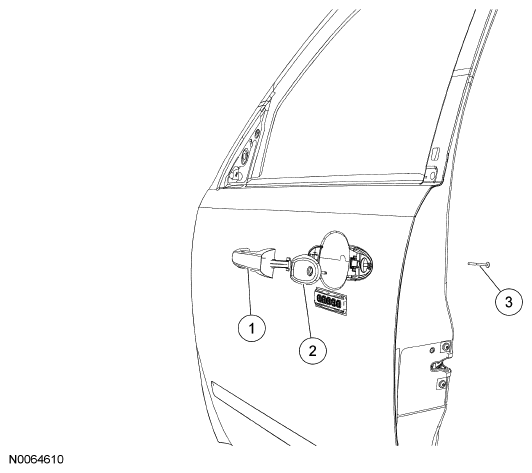

Fig 1: Identifying Exterior Front Door Handle
G06099867Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION

Item Part Number Description
1 7822404 Exterior front door handle
2 78218B08/78218A14 Exterior front door handle bezel (without lock cylinder/with lock cylinder)
3 - Exterior front door handle cover retaining screw (part of 7826684/7826685)
