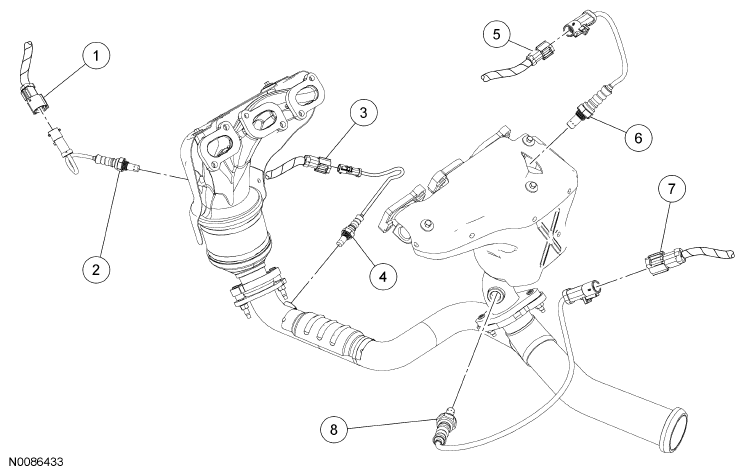

Heated Oxygen Sensor (HO2S) and Catalyst Monitor Sensor - Exploded View
WARNING: This page is about a different car, the 2010 Mercury Mariner and 2010 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
ITEM DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | 14A464 | Heated Oxygen Sensor (HO2S) electrical connector - LH |
| 2 | 9F472 | HO2S - LH |
| 3 | 14A464 | Catalyst Monitor Sensor (CMS) electrical connector - LH |
| 4 | 9G444 | CMS - LH |
| 5 | 14A464 | HO2S electrical connector - RH |
| 6 | 9F472 | HO2S - RH |
| 7 | 14A464 | CMS electrical connector - RH |
| 8 | 9G444 | CMS - RH |
- For additional information, refer to appropriate procedure(s).
