Door Trim Panel - Front: Notes
WARNING: This page is about a different car, the 2010 Mercury Mariner and 2010 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

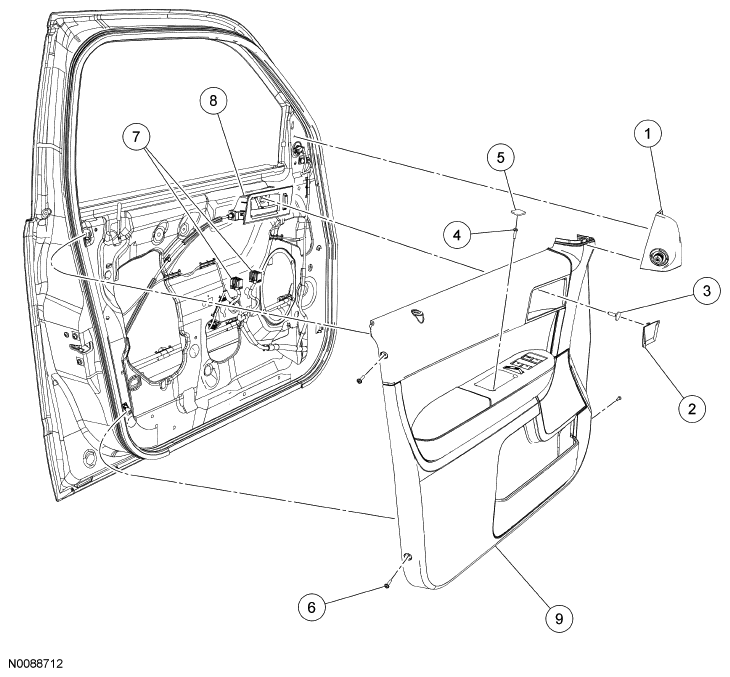

Escape shown in illustration, Mariner similar.
ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | 17K709 | Sail panel |
| 2 | 22621 LH/22620 RH | Door handle finish panel |
| 3 | N805651 | Door handle screw |
| 4 | W703268 | Door pull cup screw |
| 5 | 237B52 | Door pull cup screw cover |
| 6 | W703268 | Front door trim panel screw (3 required) |
| 7 | 14631 | LH power window electrical connectors |
| 8 | 22601 LH/22600 RH | Door handle |
| 9 | 23942 RH/23943 LH | Front door trim panel |
