Removal and Installation

WARNING: This page is about a different car, the 2010 Mercury Mariner and 2010 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

Remove the Air Cleaner (ACL) assembly. For additional information, refer to REMOVAL AND INSTALLATION .
Install the Engine Support Bar, Support Leg Adapter, Engine Support Bar Adapter and Lifting Hook Adapter.

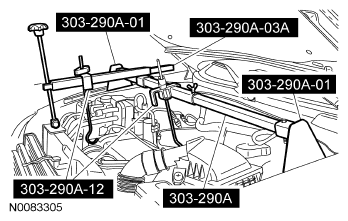

Fig 1: Lifting Hook Adapter
Courtesy of FORD MOTOR CO.
Remove the upper insulator bracket bolt, nut and the bracket.
- To install, tighten to 25 Nm (18 lb-ft).

  Fig 2: Locating Upper Insulator Bracket Bolt, Nut And Bracket
  Courtesy of FORD MOTOR CO.
Remove the upper insulator.
1. Remove the upper insulator nuts.
  - To install, tighten to 90 Nm (66 lb-ft).
2. Remove the upper insulator through bolt.
  - To install, tighten the bolt to 103 Nm (76 lb-ft).

    Fig 3: Locating Upper Insulator Through Bolt
    Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
