Transaxle Support Insulator - LH Exploded View

WARNING: This page is about a different car, the 2010 Mercury Mariner and 2010 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

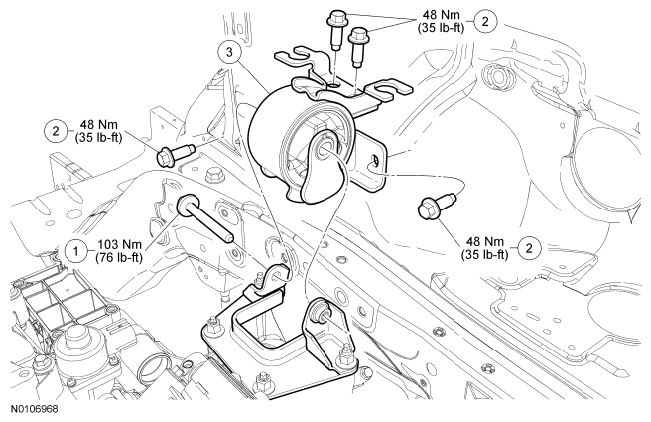

Fig 1: Exploded View Of Transaxle Support Insulator - LH With Torque Specifications
G06376929Courtesy of FORD MOTOR CO.
PARTS DESCRIPTION CHART

Item Part Number Description
1 W710173-S439 LH support insulator through bolt
2 W500233-S439 LH support insulator bolts
3 6B049 LH support insulator
