Wheel Bearings, Wheel Hub Seal and Wheel Bearing Cups: Notes
WARNING: This page is about a different car, the 2008 Ford RV Cutaway, 2008 Ford Econoline, 2008 Ford E450 Super Duty, and 2008 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Adapter for 303-224 (Handle) | 205-153 (T80T-4000-W) | |
| Drawbar, Rear Axle | 205-098 (T75T-1176-A) | |
| Installer, Rear Wheel Hub Bearing Cup | 205-099 (T75T-1225-A) | |
| Remover, Rear Wheel Hub Bearing Cup | 205-275 (T88T-1175-A) | |
| Remover, Rear Wheel Hub Bearing Cup | 205-277 (T88T-1175-B) | |
| Installer, Rear Wheel Hub Bearing Cup | 205-100 (T75T-1225-B) |

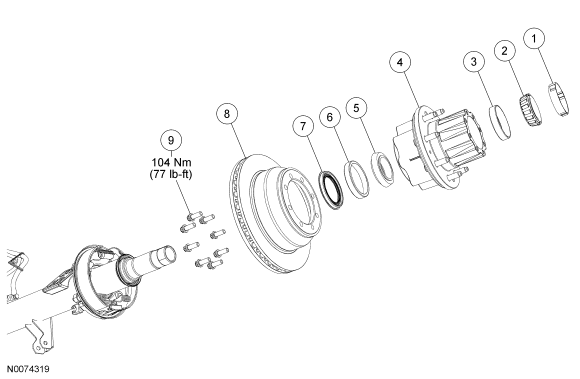

Fig 1: Exploded View Of Wheel Bearings, Wheel Hub Seal & Wheel Bearing Cups With Torque Specifications
| Item | Part Number | Description |
|---|---|---|
| 1 | 1124 | Hub nut |
| 2 | 1240 | Outer rear wheel bearing |
| 3 | 1239 | Rear wheel bearing outer cup |
| 4 | 1109 | Rear hub |
| 5 | 1243 | Rear wheel bearing inner cup |
| 6 | 1244 | Inner rear wheel bearing |
| 7 | 1175 | Hub seal |
| 8 | 4234 | Rear brake rotor |
| 9 | 13011801 | Inner hub bolt (8 required) |
