Heated Oxygen Sensor (HO2S) and Catalyst Monitor Sensor - Exploded View
WARNING: This page is about a different car, the 2008 Ford RV Cutaway, 2008 Ford Econoline, 2008 Ford E450 Super Duty, and 2008 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

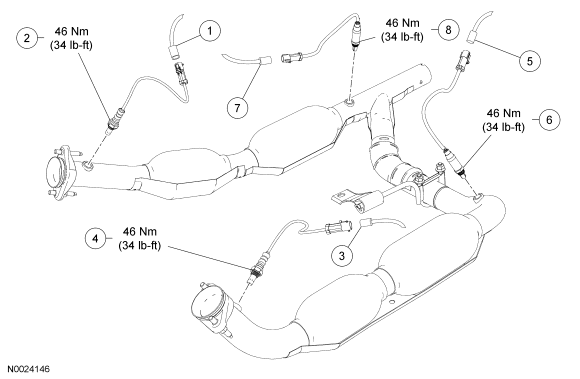

Fig 1: Exploded View Of Heated Oxygen Sensor HO2S and Catalyst Monitor Sensor - 4.6L With Torque Specifications
| Item | Part Number | Description |
|---|---|---|
| 1 | - | RH heated oxygen sensor (HO2S) electrical connector (part of 12B637) |
| 2 | 9F472 | RH HO2S |
| 3 | - | LH HO2S electrical connector (part of 12B637) |
| 4 | 9F472 | LH HO2S |
| 5 | - | LH catalyst monitor sensor electrical connector (part of 12B637) |
| 6 | 9G444 | LH catalyst monitor sensor |
| 7 | - | RH catalyst monitor sensor electrical connector (part of 12B637) |
| 8 | 9G444 | RH catalyst monitor sensor |

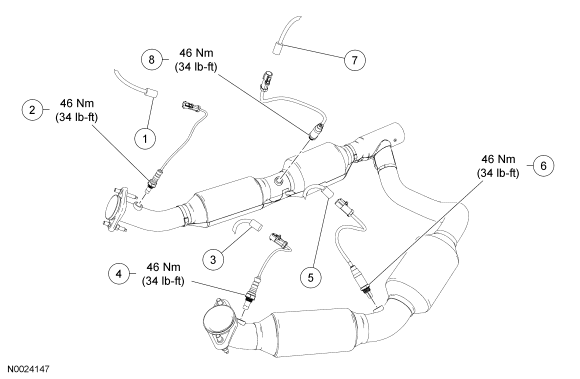

Fig 2: Exploded View Of Heated Oxygen Sensor HO2S and Catalyst Monitor Sensor - 5.4L With Torque Specifications
| Item | Part Number | Description |
|---|---|---|
| 1 | - | RH heated oxygen sensor (HO2S) electrical connector (part of 12B637) |
| 2 | 9F472 | RH HO2S |
| 3 | - | LH HO2S electrical connector (part of 12B637) |
| 4 | 9F472 | LH HO2S |
| 5 | - | LH catalyst monitor sensor electrical connector (part of 12B637) |
| 6 | 9G444 | LH catalyst monitor sensor |
| 7 | - | RH catalyst monitor sensor electrical connector (part of 12B637) |
| 8 | 9G444 | RH catalyst monitor sensor |

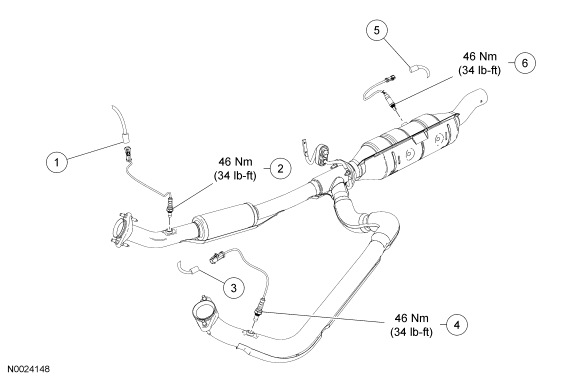

Fig 3: Exploded View Of Heated Oxygen Sensor HO2S and Catalyst Monitor Sensor - 6.8L With Torque Specifications
| Item | Part Number | Description |
|---|---|---|
| 1 | - | RH heated oxygen sensor (HO2S) electrical connector (part of 12B637) |
| 2 | 9F472 | RH HO2S |
| 3 | - | LH HO2S electrical connector (part of 12B637) |
| 4 | 9F472 | LH HO2S |
| 5 | - | Catalyst monitor sensor electrical connector (part of 12B637) |
| 6 | 9G444 | Catalyst monitor sensor |
- For additional information, refer to the procedures in this article.
