Evaporative Emission Canister Purge Valve: Notes
WARNING: This page is about a different car, the 2008 Ford RV Cutaway, 2008 Ford Econoline, 2008 Ford E450 Super Duty, and 2008 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

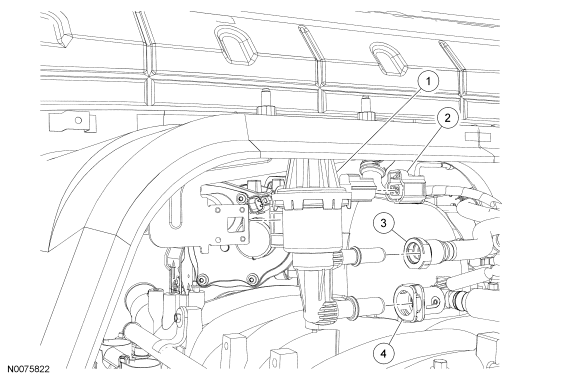

Under cowl shown, underhood similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | 9G641 | Evaporative emission (EVAP) canister purge valve |
| 2 | - | EVAP canister purge valve electrical connector (part of 12B637) |
| 3 | - | Intake manifold-to-EVAP canister purge valve fuel vapor tube quick connect coupling (part of 9D289). |
| 4 | - | EVAP canister assembly -to-EVAP canister purge valve fuel vapor tube quick connect coupling (part of 9L291). |
