Removal And Installation
WARNING: This page is about a different car, the 2008 Ford RV Cutaway, 2008 Ford Econoline, 2008 Ford E450 Super Duty, and 2008 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

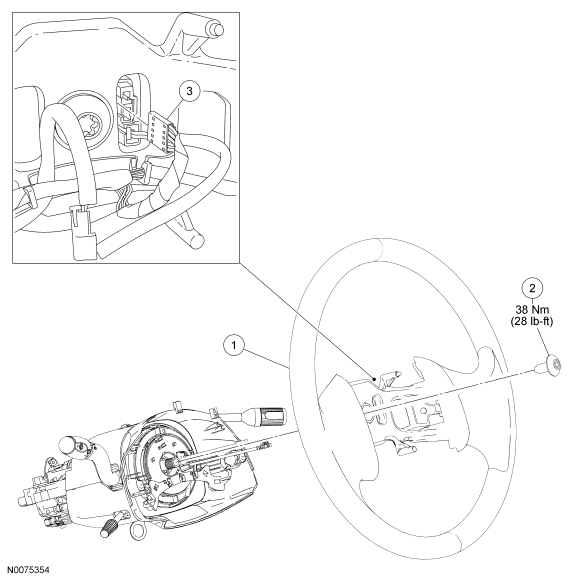

| Item | Part Number | Description |
|---|---|---|
| 1 | 3600 | Steering wheel |
| 2 | N807493 | Steering wheel bolt |
| 3 | - | Steering wheel switches electrical connector (part of 3600) |
- Turn the steering wheel to the straight-ahead position and turn the ignition switch to the OFF position.
- Remove the driver air bag module. For additional information, refer to SUPPLEMENTAL RESTRAINT SYSTEM article.
- If equipped, disconnect the steering wheel switches electrical connector and position it aside.
- Remove and discard the steering wheel bolt.
- To install, tighten to 38 Nm (28 lb-ft).
- Using the special tool, remove the steering wheel.
- Remove the steering wheel while routing the wires from the clockspring through the steering wheel.
- To install, reverse the removal procedure.
CAUTION:
Removing the steering wheel without using a puller may damage the steering column bearings.
